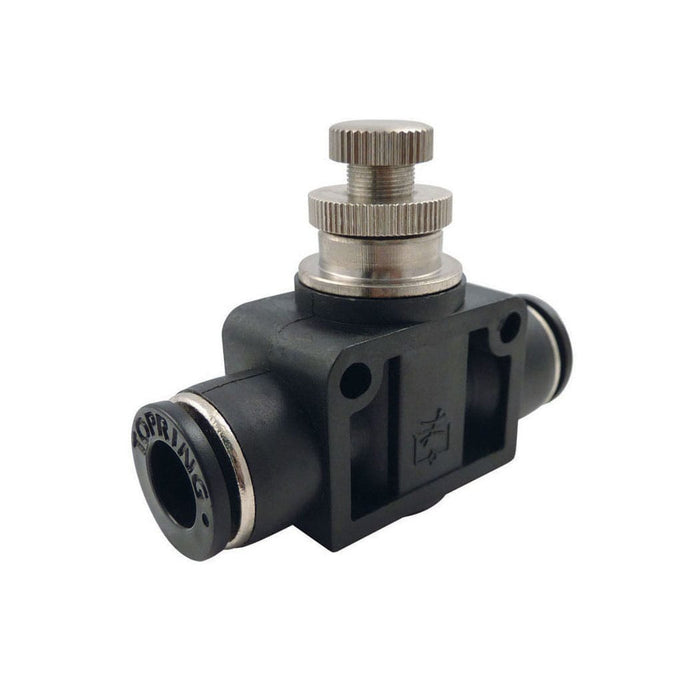

44.956 Topring Speed Ctrl Valve 3/8 MAXFIT (BAG OF 2)

44.956 Topring Speed Ctrl Valve 3/8 MAXFIT (BAG OF 2)

Technical Specifications

• 2nd Inlet Connection Material.. Polymer
• Adjustability Capacity.. Yes
• Body Material.. PBT Polymer
• Color.. Black, Silver
• Compatible Fluids.. Air
• Inlet Connection Material.. Polymer
• Inlet Connection Subtype.. Imperial Self-Locking
• Inlet Connection Type.. Push-to-Connect Fitting
• Inlet Nominal Size (Imperial).. 3/8 in
• Inlet Quantity.. 1
• Maximum Fluid Temperature (°C).. 60
• Maximum Inlet Pressure (PSI).. 150
• Mechanism or Internal Moving Parts Material.. Rubber, Stainless Steel
• Minimum Fluid Temperature (°C).. 5
• Nominal Diameter (in).. 3/8
• Outlet Connection Subtype.. Imperial Self-Locking
• Outlet Connection Type.. Push-to-Connect Fitting
• Outlet Nominal Size (Imperial).. 3/8 in
• Outlet Quantity.. 1
• Product Series.. 44
• Product Type.. Cylinder Flow Control Valves
• Release Sleeve Material.. Polyacetate Resin
• Seal Material.. Nitrile/NBR
• Sub-Brand.. MAXFIT
• Swivel.. No
• Type of Regulation.. Meter-Out
