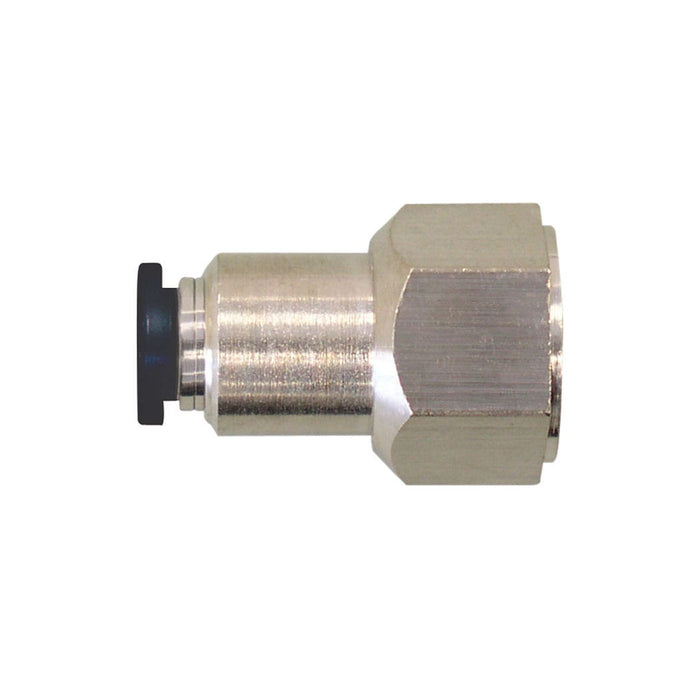

46.210 Topring (F) Connector 8mm x 1/4(F)BSPT MAXFIT (BAG OF 10)

46.210 Topring (F) Connector 8mm x 1/4(F)BSPT MAXFIT (BAG OF 10)

Technical Specifications

• 2nd Inlet Connection Gender.. Female
• 2nd Inlet Connection Material.. Nickel Plated Brass
• 2nd Inlet Connection Subtype.. BSPT (R)
• 2nd Inlet Connection Type.. Threaded
• 2nd Inlet Nominal Size (Imperial).. 1/4 in
• Body Material.. PBT Polymer
• Color.. Silver
• Compatible Fluids.. Air
• Inlet Connection Material.. Polymer
• Inlet Connection Subtype.. Metric Self-Locking
• Inlet Connection Type.. Push-to-Connect Fitting
• Inlet Nominal Size (Metric).. 8 mm
• Inlet Quantity.. 2
• Maximum Fluid Temperature (°C).. 60
• Maximum Inlet Pressure (PSI).. 150
• Mechanism or Internal Moving Parts Material.. Rubber, Stainless Steel
• Minimum Fluid Temperature (°C).. 5
• Nominal Diameter (mm).. 8
• Product Series.. 46
• Product Type.. Adapters
• Release Sleeve Material.. Polyacetate Resin
• Seal Material.. Nitrile/NBR
• Sub-Brand.. MAXFIT
• Swivel.. No
