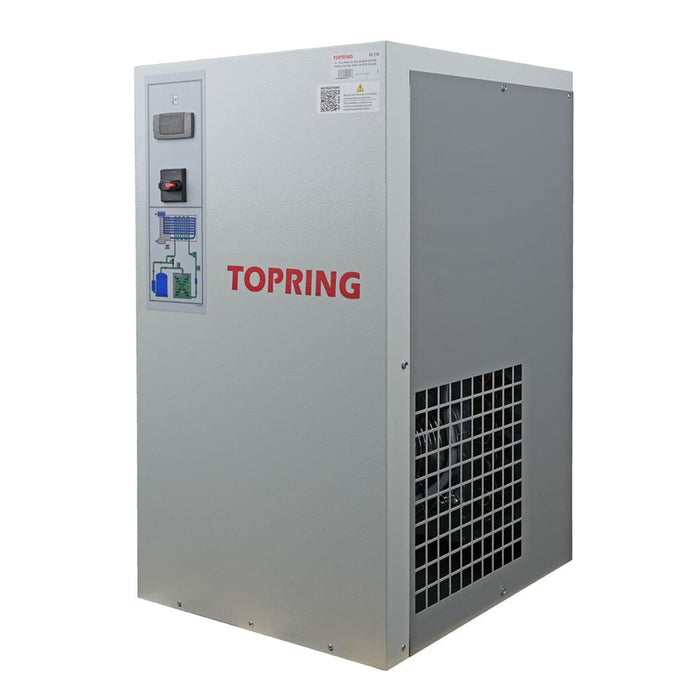

49.277 : Topring Hi-Temp Refrig. Air Dryer 50 SCFM & Filter M1-115V/1/60

49.277 : Topring Hi-Temp Refrig. Air Dryer 50 SCFM & Filter M1-115V/1/60

Technical specifications

• Product series.. 49
• Product type.. High temperature refrigeration dryers
• Nominal airflow (SCFM).. 50
• Power cord included.. Yes
• Filter included.. No
• Minimum operating ambient temperature (°C).. 10
• Maximum operating ambient temperature (°C).. 82
• Maximum storage temperature (°C).. 48
• Dew point (°C).. 10
• Maximum Inlet Pressure (PSI).. 232
• Reference temperature for maximum inlet pressure (°C).. 38
• Number of outputs.. 1
• With NEC.. No
• Compatible fluids.. Air
• Type of refrigerant gas.. R404a
• Color.. Light gray
• Heat exchanger material.. Stainless steel
• Clearance required above product (mm).. 1500
• Clearance required above product (in).. 59.06
• Clearance required between product and wall (mm).. 1500
• Clearance required between product and wall (in).. 59.06
