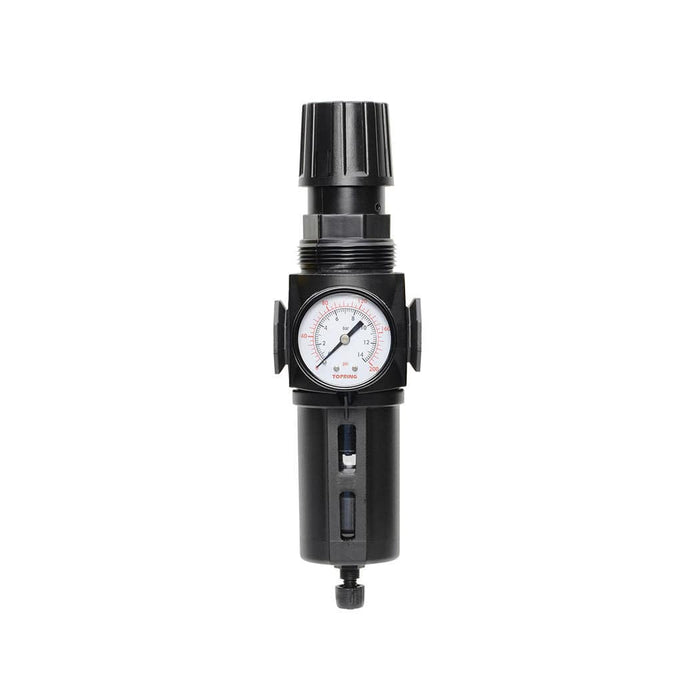

50.231A : TOPRING FILTER/REGULATOR 3/8 AUTOMATIC DRAIN WITH STANDARD BOWL MODULAIR 300
50.231A : TOPRING FILTER/REGULATOR 3/8 AUTOMATIC DRAIN WITH STANDARD BOWL MODULAIR 300
SPECIFICATIONS
• Port Size: 3/8 (F) NPT
• Maximum Airflow at 100 PSI: 3/8: 30 SCFM
• Ambient/Media Temperature:
Standard Bowl: 4 to 52 °C
• Inlet Pressure:
Standard Bowl with Automatic Drain: 30-150 PSI
• Outlet Pressure: Adjustable up to 150 PSI
• Panel Mounting: 52 mm hole required
• Drain: Manual or automatic
• Bowl Capacity: 151 ml
• Seals: Nitrile
FEATURES
• Modular or inline mounting
• High performance
• Designed to remove particulate material down to 5 micron from the airstream to protectdownstream equipment
• Superior removal of free water up to 98% efficiency
• Superior pressure regulation — diaphragm type regulator
• Self relieving design
• Push-pull adjusting knob
• Front mounted clamping design with encapsulated screws
