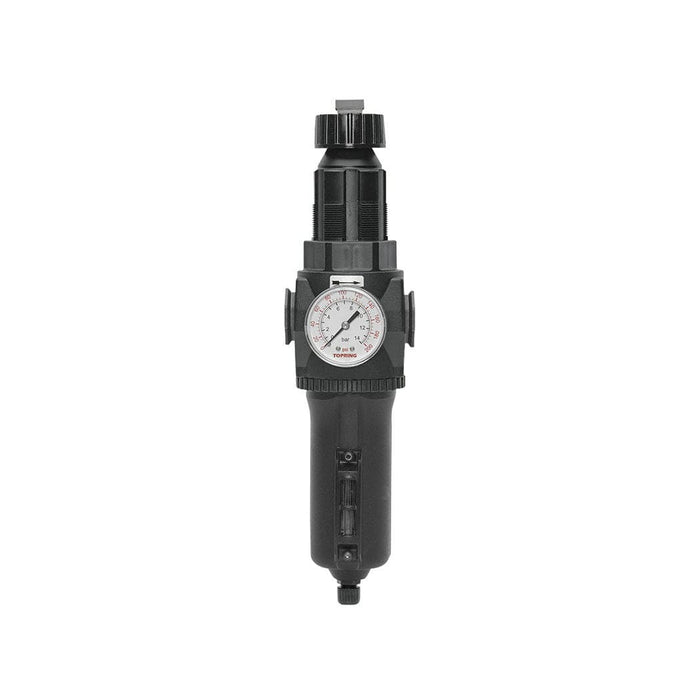

50.253A : TOPRING FILTER/REGULATOR 3/4 AUTOMATIC DRAIN WITH METAL BOWL AND GAUGE MODULAIR 400
50.253A : TOPRING FILTER/REGULATOR 3/4 AUTOMATIC DRAIN WITH METAL BOWL AND GAUGE MODULAIR 400
SPECIFICATIONS
• Port Size: 3/4 (F) NPT
• Ambient/Media Temperature:
Metal Bowl with Automatic Drain: 4 to 66 °C
• Inlet Pressure:
Metal Bowl with Automatic Drain: 30-200 PSI
• Outlet Pressure: Adjustable up to 125 PSI
• Panel Mounting: 52 mm hole required
• Drain: automatic
• Bowl Capacity: 270 ml
• Seals: Nitrile
FEATURES
• Modular or inline mounting
• High flow capacity
• Designed to remove particulate material down to 5 micron from the airstream to protect downstream equipment
• Superior removal of free water up to 98% efficiency
• Superior pressure regulation — diaphragm type regulator
• Self relieving design
• Push-pull adjusting knob
• Front mounted clamping design with encapsulated screws
