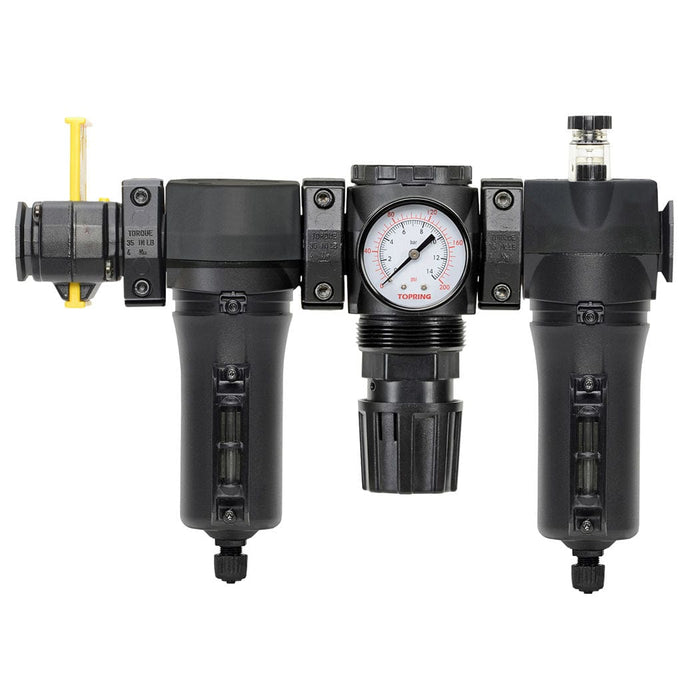

50.533A1 : TOPRING FILTER + REGULATOR + LUBRICATOR 3/8 (F) NPT AUTOMATIC WITH METAL BOWL AND LOCKOUT VALVE 20-200 PSI MODULAIR 300
50.533A1 : TOPRING FILTER + REGULATOR + LUBRICATOR 3/8 (F) NPT AUTOMATIC WITH METAL BOWL AND LOCKOUT VALVE 20-200 PSI MODULAIR 300
SPECIFICATIONS
• Port Size: 3/8 (F) NPT
• Ambient/Media Temperature: Metal Bowl with Automatic Drain: 4 to 66°C
• Outlet Pressure: Adjustable up to 150 PSI
• Filtration: 5 micron
• Drain: automatic
• Bowl Capacity: 151 ml
• Metal Bowl: Aluminum with clear nylon sight glass
• Seals: Nitrile
FEATURES
• Superior removal of free water up to 98% efficiency
• Superior pressure regulation — diaphragm type regulator
• Self relieving design regulator
• Push-pull adjusting knob
• Sight feed design lubrificator — transparent dome to show oil delivery
• External oil delivery adjusting knob — removable for tamper resistance
• Provides positive lockout of supply air and exhausting of dowstream air
• Can be padlocked only in the closed position
