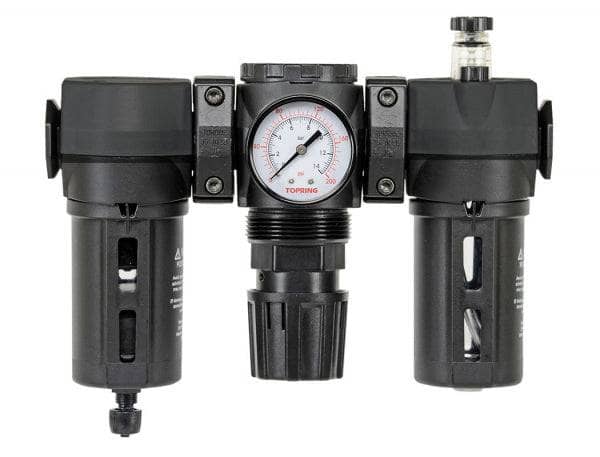

50.535A : TOPRING FILTER + REGULATOR + LUBRICATOR 1/2 (F) NPT
50.535A : TOPRING Filter + regulator + lubricator 1/2 (f) npt manual with standard bowl 0-150 psi modulair 300
Technical specifications and certifications
• Port Size: 1/2 (F) NPT
• Ambient/Media Temperature : Standard Bowl: 4 to 52°C
• Outlet Pressure: Adjustable up to 150 PSI
• Filtration: 5 micron
• Drain: Manual
• Bowl Capacity: 151 ml
• Standard Bowl: Polycarbonate with nylon shatterguard
• Seals: Nitrile
Features and benefits
• Superior removal of free water up to 98% efficiency
• Superior pressure regulation — diaphragm type regulator
• Self relieving design regulator
• Push-pull adjusting knob
• Sight feed design lubrificator — transparent dome to show oil delivery
• External oil delivery adjusting knob — removable for tamper resistance
Operation and installation
WHERE TO INSTALL A FILTER
Install the filter as far as possible from the compressor to allow the compressed air to cool and water vapors to condense. Removal of water in liquid form is more effective than removing water which is vapor form.
Install the filter closest to the tool and before the lubricator and regulator.
Always install the filter with the arrows pointing to the tool or application.
WHERE TO INSTALL A REGULATOR
Install the regulator on each pipe where applications and air tools requires different working pressure.
Always install the regulator downstream of a filter and upstream of a lubricator.
Can be installed vertically or horizontally.
Always install regulator with the arrows pointing to the tool or application.
WHERE TO INSTALL A LUBRICATOR
Install as close to the tool as possible, within 5 meters or 30 meters for micro-fog type lubricators.
Always install downstream of a filter and a regulator.
Ensure that the lubricator is easily accessible for filling pneumatic tool oil.
Always install with the arrows pointing to the tool or application.
