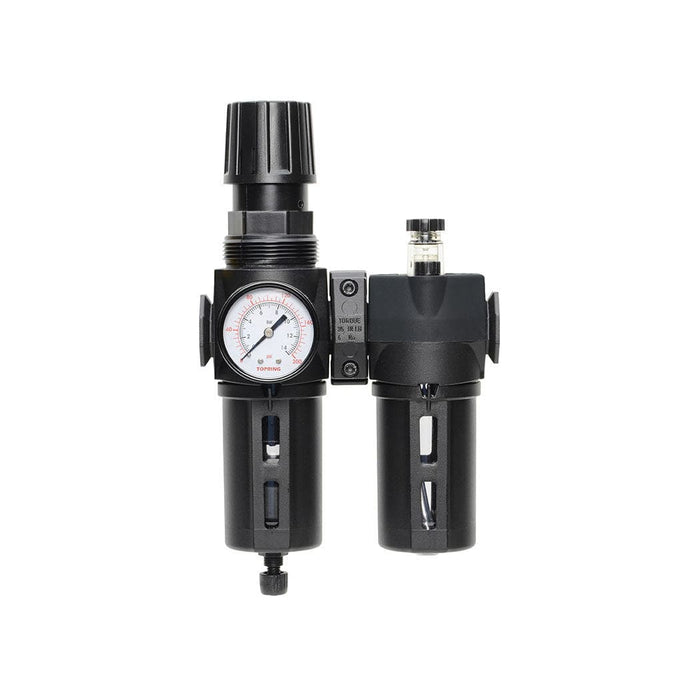

50.635A : TOPRING FILTER/REGULATOR + LUBRICATOR 0-150 PSI MODULAIR 300
50.635A : TOPRING FILTER/REGULATOR + LUBRICATOR 0-150 PSI MODULAIR 300
SPECIFICATIONS
• Port Size: 1/2 (F) NPT
• Maximum Airflow at 100 PSI: 1/2 : 55 SCFM
• Ambient/Media Temperature: Standard Bowl: 4 to 52 °C
• Outlet Pressure: Adjustable up to 150 PSI
• Filtration: 5 micron
• Drain: Manual
• Bowl Capacity: 151 ml
• Standard Bowl: Polycarbonate with nylon shatterguard
• Seals: Nitrile
FEATURES
• Designed to remove particulate material to 5 micron from the airstream to protect downstream equipment
• Superior removal of free water up to 98% efficiency
• Superior pressure regulation — diaphragm type regulator
• Self relieving design regulator
• Push-pull adjusting knob
• Sight feed design lubrificator — transparent dome to show oil delivery
• External oil delivery adjusting knob — removable for tamper resistance
