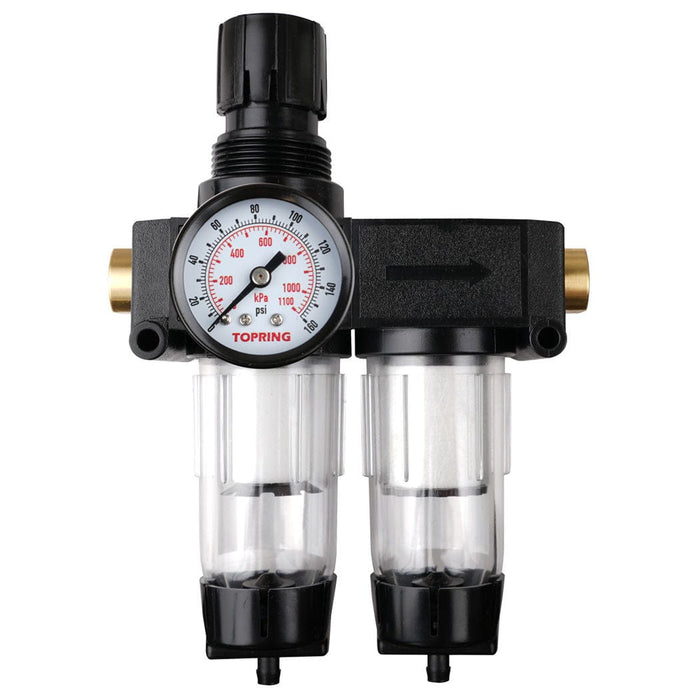

50.660A : TOPRING FILTER/REGULATOR + COALESCING FILTER 1/4 (F) NPT MANUAL DRAIN WITH GAUGE MODULAIR 200
50.660A : TOPRING FILTER/REGULATOR + COALESCING FILTER 1/4 (F) NPT MANUAL DRAIN WITH GAUGE MODULAIR 200
SPECIFICATIONS
• Port Size: 1/4 (F) NPT
• Ambient/Media Temperature: 4 to 52°C
• Inlet Pressure: Standard bowl with manual drain: 0-150 PSI
• Outlet Pressure: Adjustable up to 100 PSI
• Filtration: (F) 5 micron
• Filtration: (Fc) 0.01 micron
• Standard Bowl Capacity: 60 ml
• Standard Bowl: High-strength Polycarbonate
• Seals: Nitrile
FEATURES
• Filter designed to remove particulate material down to 5 micron from the airstream to protect downstream equipment
• Filter with superior removal of free water up to 98% efficiency
• Coalesing-filter designed to remove particulate material 99.98% of free oils and solid contaminants 0.01 micron and larger
• Superior pressure regulation - piston type regulator
• Self relieving design
• Push-pull adjusting knob
