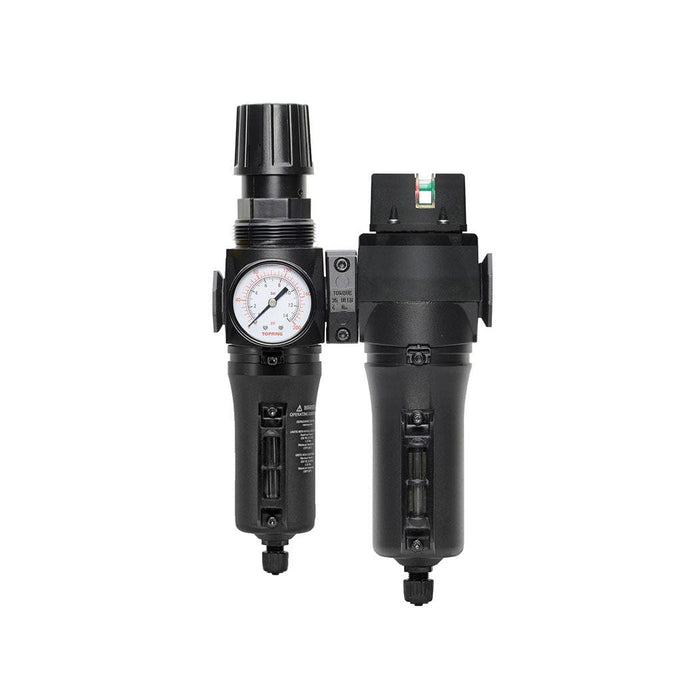

50.673A : TOPRING FILTER/REGULATOR + COALESCING FILTER 3/8 (F) NPT AUTOMATIC DRAIN WITH METAL BOWL MODULAIR 300
50.673A : TOPRING FILTER/REGULATOR + COALESCING FILTER 3/8 (F) NPT AUTOMATIC DRAIN WITH METAL BOWL MODULAIR 300
SPECIFICATIONS
• Port Size: 3/8 (F) NPT
• Ambient/Media Temperature: Metal Bowl with Automatic Drain: 4 to 66°C
• Inlet Pressure: Metal Bowl with Automatic Drain: 30-200 PSI
• Outlet Pressure: Adjustable up to 100 PSI
• Filtration: (F) 5 micron
• Filtration: (Fc) 0.01 micron
• Drain: automatic
• Bowl Capacity: 151 ml
• Metal Bowl: Aluminum with clear nylon sight glass
• Seals: Nitrile
FEATURES
• Designed to remove particulate material to 5 micron from the airstream to protect downstream equipment
• Filter with superior removal of free water up to 98% efficiency
• Coalesing-filter designed to remove particulate material 99.98% of free oils and solid contaminants 0.01 micron and larger
• Coalesing-filter with differential pressure gauge to indicate when coalescing filter element needs changing
• Superior pressure regulation — diaphragm type regulator
• Self relieving design
• Push-pull adjusting knob
