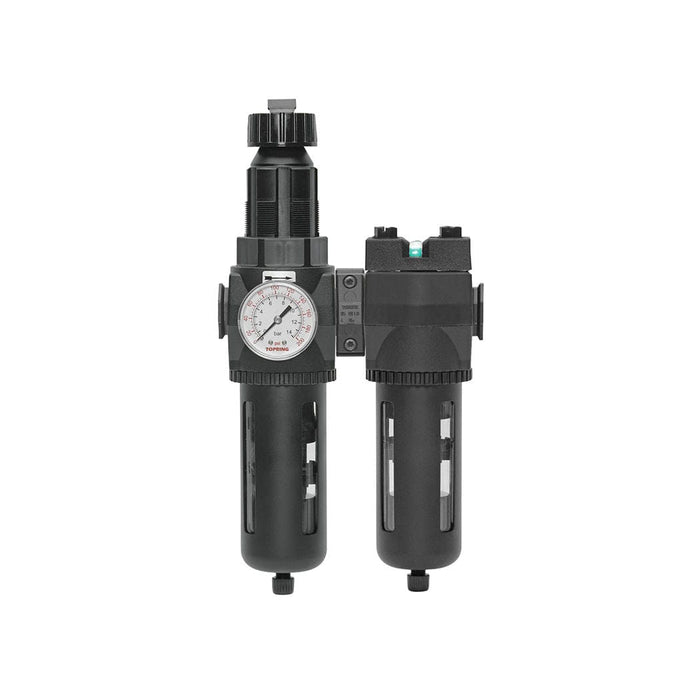

50.680A : TOPRING FILTER/REGULATOR + COALESCING FILTER 3/4 (F) NPT MANUAL DRAIN WITH STANDARD BOWL MODULAIR 400
50.680A : TOPRING FILTER/REGULATOR + COALESCING FILTER 3/4 (F) NPT MANUAL DRAIN WITH STANDARD BOWL MODULAIR 400
SPECIFICATIONS
• Port Size: 3/4 (F) NPT
• Ambient/Media Temperature: Standard Bowl: 4 to 52°C
• Inlet Pressure: Standard Bowl with Manual Drain: 0-150 PSI
• Outlet Pressure: Adjustable up to 100 PSI
• Filtration: (F) 5 micron
• Filtration: (Fc) 0.01 micron
• Drain: Manual
• Bowl Capacity: 270 ml
• Standard Bowl: Polycarbonate with steel shatterguard
• Seals: Nitrile
FEATURES
• High performance combination with 2 units
• High-flow design
• Designed to remove particulate material down to 5 micron from the airstream to protect downstream equipment
• Filter with superior removal of free water up to 98% efficiency
• Coalesing-filter designed to remove particulate material 99.98% of free oils and solid contaminants 0.01 micron and larger
• Coalesing-filter with differential pressure gauge to indicate when coalescing filter element needs changing
• Superior pressure regulation — diaphragm type regulator
• Self relieving design
• Push-pull adjusting knob
