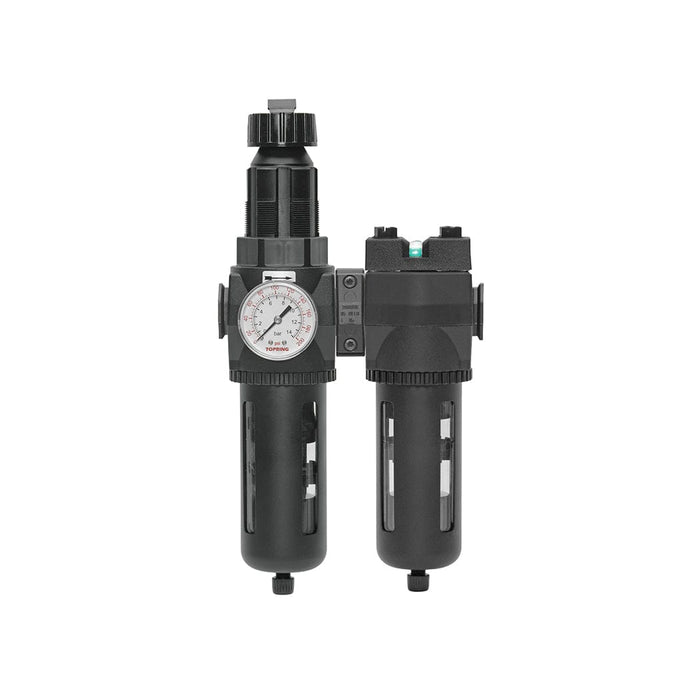

50.681A: TOPRING 5 Micron Filter Regulator 30 to 125 PSI and 0.01 Micron Coalescing Filter 3/4 (F) NPT S50

Excellent performance suit with 2 units.
High flow design.
Designed to remove particles down to 5 microns to protect downstream equipment.
Superior free water removal up to 98% efficient.
Coalescing filter designed to remove 99.98% of solid particles, water and oil aerosols larger than 0.01 microns.
Coalescing filter with differential pressure indicator to signal when the filter element needs to be changed.
Superior pressure regulation — diaphragm regulator.
Designed for excess downstream pressure.
Push-pull adjustment cap.

Technical Specifications

• Product Series: 50
• Product Type: Combined Units
• Lockable: No
• Maximum Ambient Operating Temperature (°C): 52
• Maximum Inlet Pressure (PSI): 150
• Minimum Regulated Pressure (PSI): 30
• Filter Type: Coalescing
• Reference Filtration Level (micron): 0.01
• Nominal Airflow Rate (SCFM): 70
• Drain Type: Automatic
• Trigger Type: Mechanical Float
• Inlet Connection Type: Threaded
• Inlet Connection Subtype: NPT
• Inlet Nominal Size (Imperial): 3/4 in
• Inlet Connection Gender: Female
• Compatible Fluids: Air
• Color: Black
• Bowl or Reservoir Material: Polycarbonate
