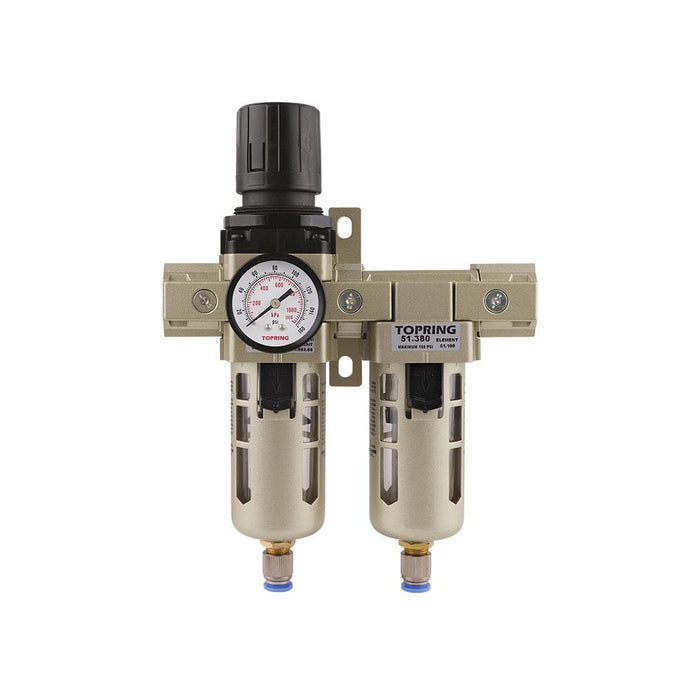

51.300 : Topring 5µm FR 5-125PSI+0.3µm coal. F 1/4FNPT

51.300 : Topring 5µm FR 5-125PSI+0.3µm coal. F 1/4FNPT

Technical Specifications

• Adjustability Capacity.. Yes
• Bowl Capacity (L).. 0.02
• Bowl Capacity (ml).. 20
• Bowl Guard Material.. Steel
• Bowl or Reservoir Material.. Polycarbonate
• Color.. Silver
• Compatible Fluids.. Air
• Diaphragm Material.. EPDM
• Drain Included.. Yes
• Drain Location.. Internal
• Drain Type.. Semi-Automatic
• Filter Type.. Coalescing
• Filtration Media or Strainer Material.. Polyester, Polyethylene
• Inlet Connection Gender.. Female
• Inlet Connection Material.. Aluminum
• Inlet Connection Subtype.. NPT
• Inlet Connection Type.. Threaded
• Inlet Nominal Size (Imperial).. 1/4 in
• Inlet Quantity.. 1
• Installation Type.. Vertical
• Lockable.. No
• Maximum Display Pressure (PSI).. 125
• Maximum Fluid Temperature (°C).. 60
• Maximum Inlet Pressure (PSI).. 145
• Minimum Display Pressure (PSI).. 5
• Minimum Fluid Temperature (°C).. 5
• Minimum Regulated Pressure (PSI).. 5
• Nominal Airflow Rate (SCFM).. 28
• Outlet Connection Gender.. Female
• Outlet Connection Material.. Aluminum
• Outlet Connection Subtype.. NPT
• Outlet Connection Type.. Threaded
• Outlet Nominal Size (Imperial).. 1/4 in
• Outlet Quantity.. 1
• Product Series.. 51
• Product Type.. Combined Units
• Reference Filtration Level (micron).. 0.3
• Required Installation Hardware.. Screws
• Seal Material.. Nitrile/NBR
• Second Bowl Capacity (L).. 0.045
• Second Bowl Capacity (ml).. 45
• Spring Material.. Stainless Steel
• Sub-Brand.. AIRFLO 300
