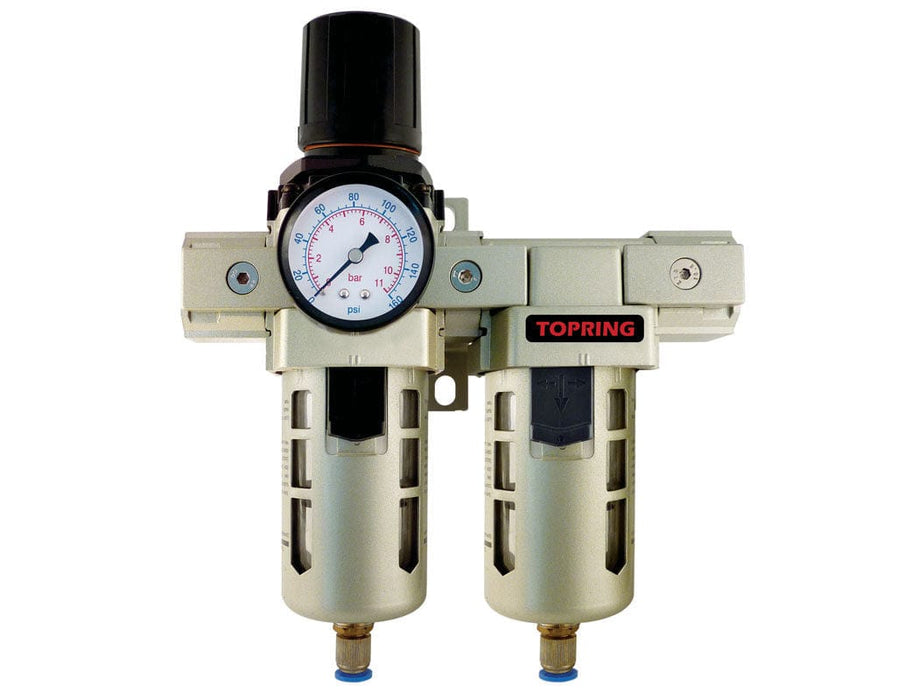

51.397 : TOPRING FILTER/REGULATOR + COALESCING FILTER 3/8 INCH SEMI-AUTOMATIC WITH STANDARD BOWL - AIRFLO 400
TOPRING PRODUCTS ARE DROPSHIPPED DIRECT FROM TOPRING WAREHOUSE IN QUEBEC
51.397 : TOPRING FILTER/REGULATOR + COALESCING FILTER 3/8 INCH SEMI-AUTOMATIC WITH STANDARD BOWL - AIRFLO 400
SPECIFICATIONS:
• Port Size: 3/8 (F) NPT
• Maximum Airflow at 100 PSI: 71 SCFM
• Maximum Working Pressure: 150 PSI
• Pressure Range: Standard: 5-125 PSI
• Working Temperature: 5 to 60°C
• Filtration: 5 micron filter – 0.3 micron coalescing filter
Drain
• Standard Bowl: Semi-automatic • 8 mm O.D. tubing
• Bowl Capacity: 45 ml filter/regulator – 45 ml coalescing filter
• Pressure Gauge Port Size: 1/4 (F) NPT
Materials
• Body Material: Die cast aluminum
• Bowl Type: Polycarbonate with steel guard
• Bowl Guard: Steel
• Regulation Type: Relieving
• Filter Element: filter: Polyethylene, 5 micron |coalescing filter: Fiberglass paper, 0.3 micron
• Deflector & Spinner: ABS
• O-Rings & Seals: EPDM rubber
• Regulator Cap: Die cast aluminum
• Regulator Adjusting Knob: Reinforced nylon
• Diaphragm: EPDM rubber
• Poppet Valve: Brass and rubber
• Regulator Spring: Stainless steel
FEATURES:
• Compact design with space saving integrated filter/regulator
• Accurate pressure control with little drift
• Removable locking push-pull adjusting knob
• Standard semi-automatic drain requires a simple tug of the ring to drain
• High performance filter that removes 99.97% of solid particles, oil and water aerosols greater than 0.3 micron
• Pressure gauge, piping adapters and mounting bracket included
