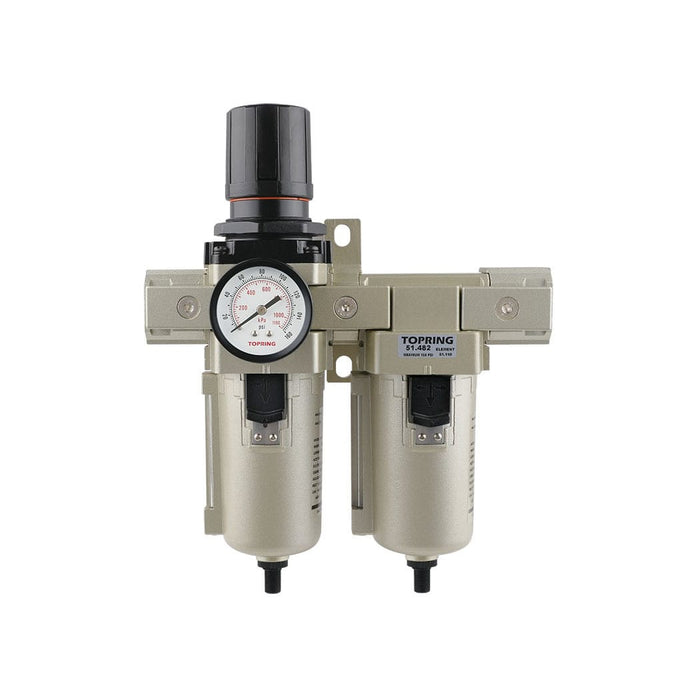

51.400 : Topring 5µm FR 5-125PSI+0.3µm coal. F 3/8FNPT
Technical Specifications
- Adjustability Capacity.. Yes
- Bowl Capacity (L).. 0.045
- Bowl Capacity (ml).. 45
- Bowl or Reservoir Material.. Aluminum
- Color.. Silver
- Compatible Fluids.. Air
- Diaphragm Material.. EPDM
- Drain Included.. Yes
- Drain Location.. Internal
- Drain Type.. Automatic
- Filter Type.. Coalescing
- Filtration Media or Strainer Material.. Polyester, Polyethylene
- Inlet Connection Gender.. Female
- Inlet Connection Material.. Aluminum
- Inlet Connection Subtype.. NPT
- Inlet Connection Type.. Threaded
- Inlet Nominal Size (Imperial).. 3/8 in
- Inlet Quantity.. 1
- Installation Type.. Vertical
- Lockable.. No
- Maximum Fluid Temperature (°C).. 60
- Maximum Inlet Pressure (PSI).. 145
- Minimum Fluid Temperature (°C).. 5
- Minimum Regulated Pressure (PSI).. 5
- Nominal Airflow Rate (SCFM).. 71
- Outlet Connection Gender.. Female
- Outlet Connection Material.. Aluminum
- Outlet Connection Subtype. NPT
- Outlet Connection Type.. Threaded
- Outlet Nominal Size (Imperial).. 3/8 in
- Outlet Quantity.. 1
- Product Series.. 51
- Product Type.. Combined Units
- Reference Filtration Level (micron).. 0.3
- Required Installation Hardware.. Screws
- Seal Material.. Nitrile/NBR
- Second Bowl Capacity (L).. 0.045
- Second Bowl Capacity (ml).. 45
- Spring Material.. Stainless Steel
- Sub-Brand.. AIRFLO 400
- Trigger Type.. Mechanical Float
