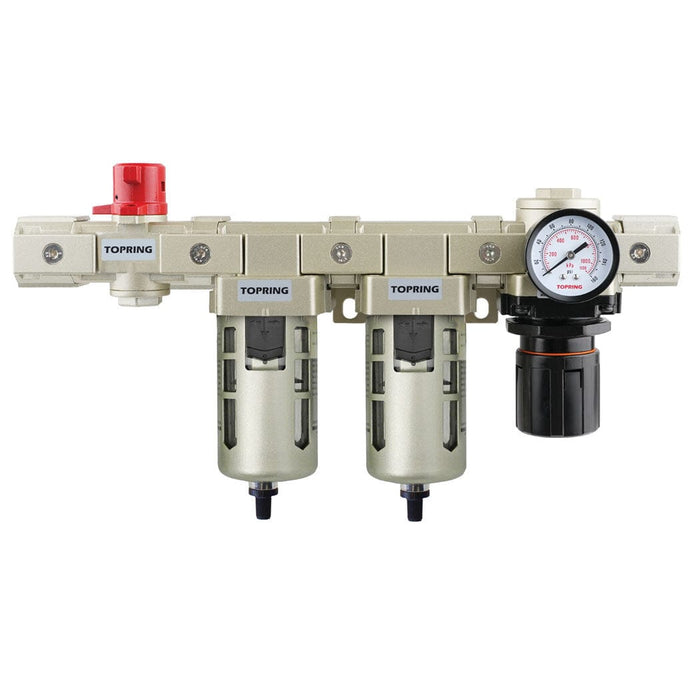

51.497.01 : Topring AIRFLO 400 V+F+FC+R 3/8 Auto Poly

51.497.01 : Topring AIRFLO 400 V+F+FC+R 3/8 Auto Poly

Technical specifications

• Product series.. 51
• Product type.. Combined units
• Lockable.. No
• Sub-Brand.. Airflo 400
• Maximum fluid temperature (°C).. 60
• Maximum Inlet Pressure (PSI).. 145
• Minimum Regulated Pressure (PSI).. 5
• Minimum display pressure (PSI).. 5
• Maximum display pressure (PSI).. 125
• Filter type.. Coalescing
• Reference filtration level (micron).. 0.3
• Nominal airflow (SCFM).. 71
• Type of bleeder.. Automatic
• Location of the bleeder.. Internal
• Trigger Type.. Mechanical float
• Bowl capacity (ml).. 45
• Bowl capacity (L).. 0.045
• Capacity of the second bowl (ml).. 45
• Capacity of the second bowl (L).. 0.045
• Input connection type.. Threaded
• Input connection subtype.. NPT
• Nominal inlet size (imperial).. 3/8 in
• Type of input connection.. Female
• Number of outputs.. 1
• Output connection type.. Threaded
• Output connection subtype.. NPT
• Nominal outlet size (imperial).. 3/8 in
• Type of output connection.. Female
• Exhaust connection type.. Threaded
• Exhaust connection subtype.. NPT
• Nominal exhaust size (imperial).. 3/8 in
• Exhaust connection type.. Female
• Bleeder included.. Yes
• Exhaust.. Yes
• Adjustability.. Yes
• Compatible fluids.. Air
• Color.. Money
• Spring material.. Stainless steel
• Sealing gasket material.. Nitrile/NBR
• Bowl or reservoir material.. Polycarbonate
• Diaphragm material.. EPDM
• Filter media or screen material.. Polyester, Polyethylene
• Bowl Protector Material.. Steel
• Inlet connection material.. Aluminum
• Output connection material.. Aluminum
• Required installation hardware.. Screw
• Installation type.. Vertical
• Diameter of the opening for the padlock (mm).. 7.3
• Padlock Opening Diameter (in).. 0.29
• Number of entries.. 1
