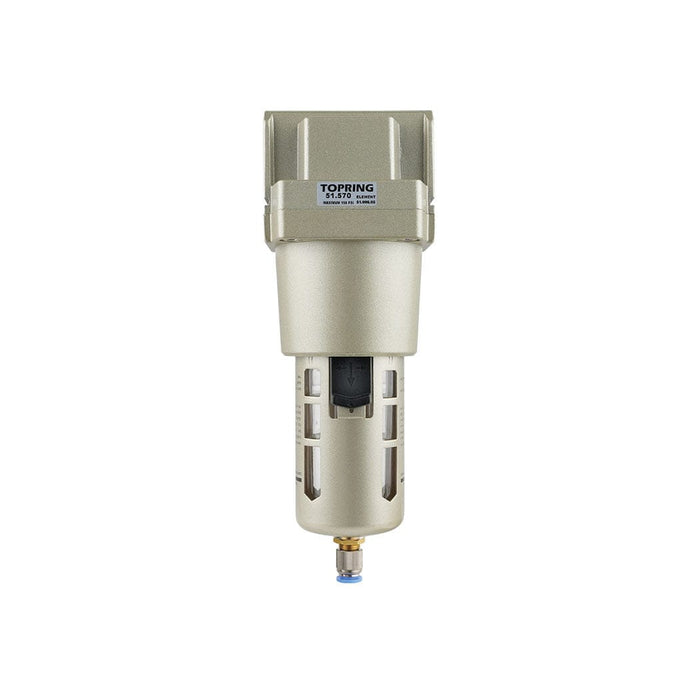

51.570 : Topring AIRFLO 500 Filter 3/4 Semi-auto Poly

51.570 : Topring AIRFLO 500 Filter 3/4 Semi-auto Poly

Technical specifications

• Product series.. 51
• Product type.. Filters
• Lockable.. No
• Sub-Brand.. Airflo 500
• Maximum fluid temperature (°C).. 60
• Maximum Inlet Pressure (PSI).. 145
• Filter type.. Particle
• Reference filtration level (micron).. 5
• Nominal airflow (SCFM).. 247
• Type of bleeder.. Semi-automatic
• Location of the bleeder.. Internal
• Bowl capacity (ml).. 130
• Bowl capacity (L).. 0.13
• Input connection type.. Threaded
• Input connection subtype.. NPT
• Nominal inlet size (imperial).. 3/4 in
• Type of input connection.. Female
• Number of outputs.. 1
• Output connection type.. Threaded
• Output connection subtype.. NPT
• Nominal outlet size (imperial).. 3/4 in
• Type of output connection.. Female
• Bleeder included.. Yes
• Adjustability.. No
• Compatible fluids.. Air
• Color.. Money
• Sealing gasket material.. Nitrile/NBR
• Bowl or reservoir material.. Polycarbonate
• Filter media or screen material.. Polyethylene
• Bowl Protector Material.. Steel
• Inlet connection material.. Aluminum
• Output connection material.. Aluminum
• Required installation hardware.. Screw
• Installation type.. Vertical
• Number of entries.. 1
