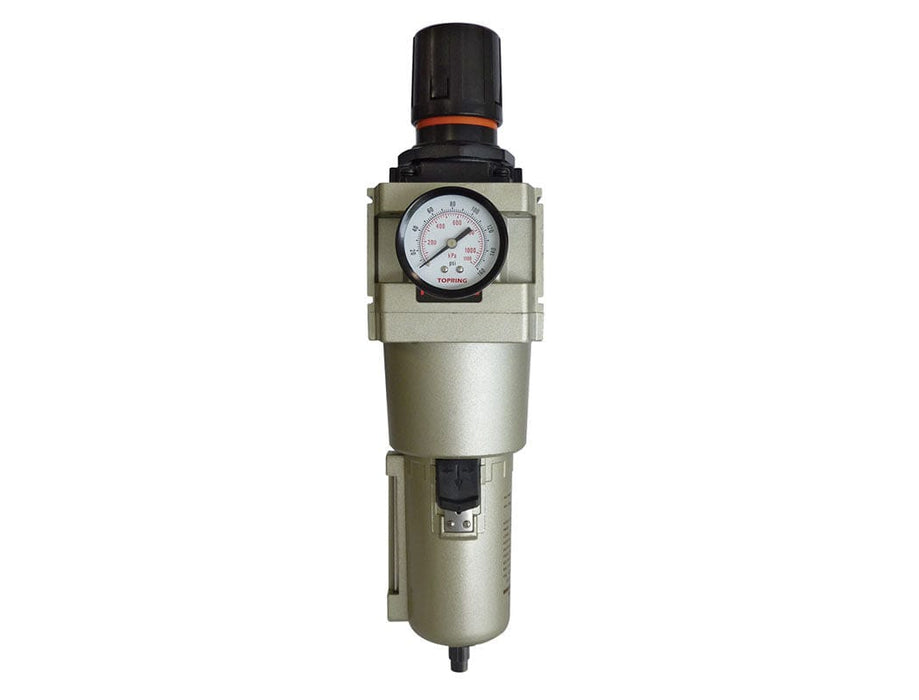

51.576 : TOPRING FILTER/REGULATOR 3/4 INCH SEMI-AUTOMATIC WITH METAL BOWL - AIRFLO 500
TOPRING PRODUCTS ARE DROPSHIPPED DIRECT FROM TOPRING WAREHOUSE IN QUEBEC
51.576 : TOPRING FILTER/REGULATOR 3/4 INCH SEMI-AUTOMATIC WITH METAL BOWL - AIRFLO 500
SPECIFICATIONS:
• Port Size: 3/4 (F) NPT
• Maximum Airflow at 100 PSI: 194 SCFM
• Maximum Working Pressure: 150 PSI
• Pressure Range: 5-30 PSI • 5-60 PSI
• Working Temperature: 5 to 60 °C
• Filtration: 5 micron
Drain
• Metal Bowl: Semi-Automatic 1/8 (F) NPT
• Bowl Capacity: 130 ml
• Pressure Gauge Port Size: 1/4 (F) NPT
Materials
• Body Material: Die cast aluminum
• Bowl Type: Aluminum
• Bowl Guard: Steel
• Filter Element: filter: Polyethylene, 5 micron
• Deflector & Spinner: ABS
• O-Rings & Seals: EPDM rubber
• Regulator Cap: Die cast aluminum
• Regulator Adjusting Knob: Reinforced nylon
• Diaphragm: EPDM rubber
• Poppet Valve: Brass and rubber
• Regulator Spring: Stainless steel
FEATURES:
• Space saving integrated filter / regulator design
• Accurate pressure control with little drift
• Removable locking push-pull adjusting knob
• Standard semi-automatic drain requires a simple pusof the ring to drain
• Pressure gauge and mounting bracket included
