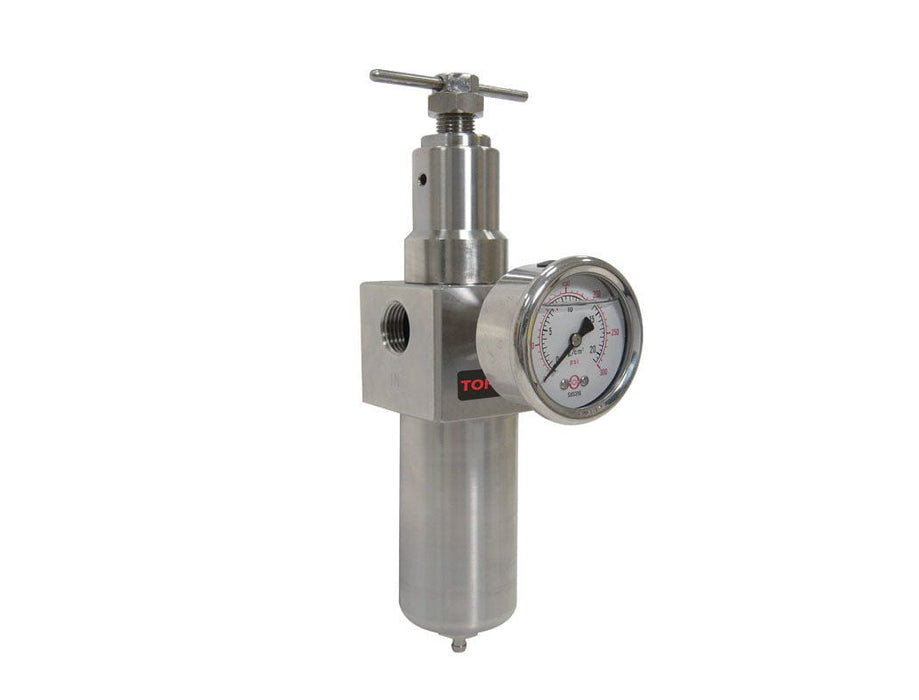

51.750 : TOPRING AIRFLO STAINLESS STEEL 300 INTEGRATED FILTER/REGULATOR (GAUGE INCLUDED) 3/8 SEMI-AUTO
TOPRING PRODUCTS ARE DROPSHIPPED DIRECT FROM TOPRING WAREHOUSE IN QUEBEC
51.750 : TOPRING AIRFLO STAINLESS STEEL 300 INTEGRATED FILTER/REGULATOR (GAUGE INCLUDED) 3/8 SEMI-AUTO
SPECIFICATIONS:
• Port Size: 3/8 (F) NPT
• Maximum Airflow: 88 SCFM
• Maximum Working Pressure: 200 PSI
• Pressure Range: 7-170 PSI
• Working Temperature: -10 to 70 °C
• Filtration: 5 microns
• Drain: Semi-automatic
• Bowl Capacity: 110 ml
• Pressure Gauge Port Size: 1/4 (F) BSPP
• Replacement Element: 51.695
• Replacement Gauge: 55.798
Material(s):
• Body Material(s): Stainless Steel
• Bowl Type:Polycarbonate with steel guard
• Bowl Guard: Steel
• Regulation Type: Relieving
• Filter Element: Polyethylene, 5 microns
• Deflector & Spinner: ABS
• O-Rings & Seals: EPDM rubber
• Regulator Cap: Reinforced nylon
• Regulator Adjusting Knob: Reinforced nylon
• Diaphragm: EPDM rubber
• Poppet Valve: Brass and rubber
• Regulator Spring: Stainless steel
FEATURES:
• Stainless steel SUS 316 body and bowl
• Space saving integrated filter/regulator design
• Removes water through centrifugal force
• Removes contaminants down to 5 microns in size
• Standard semi-automatic drain
• Accurate pressure control
• Pressure gauge and mounting bracket included
