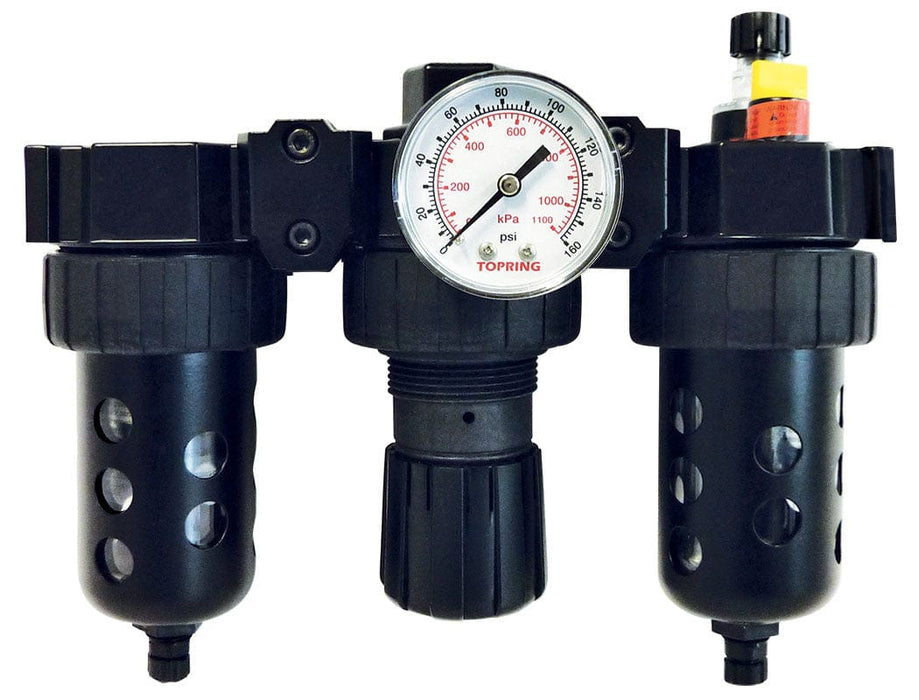

52.506 : TOPRING FILTER + REGULATOR + LUBRICATOR 3/8 (5-250) AUTOMATIC POLYCARBONATE HIFLO2
TOPRING PRODUCTS ARE DROPSHIPPED DIRECT FROM TOPRING WAREHOUSE IN QUEBEC
52.506 : TOPRING FILTER + REGULATOR + LUBRICATOR 3/8 (5-250) AUTOMATIC POLYCARBONATE HIFLO2
SPECIFICATIONS
• Port Size: 3/8 (F) NPT
• Maximum Airflow at 100 PSI: 60 SCFM
• Maximum Working Pressure: 150 PSI
• Pressure Range: 5-250 PSI
• Working Temperature: 0 to 52 °C
• Filtration: Standard 40 microns / Optional 5 microns
• Drain: Automatic
• Bowl Capacity: Filter: 130.1 ml • Lubricator: 76.9 ml
• Pressure Gauge Port Size: 1/4 (F) NPT
Material(s):
• Bowl Type: Polycarbonate
FEATURES
• High flow design
• Removes contaminants down to 40 microns in size
• Removes water through centrifugal force
• Maintains constant downstream pressure
• Provides quick response to pressure adjustments
• Lubrication automatically proportioned to airflow, eliminating readjustment
• Automatic drain available
