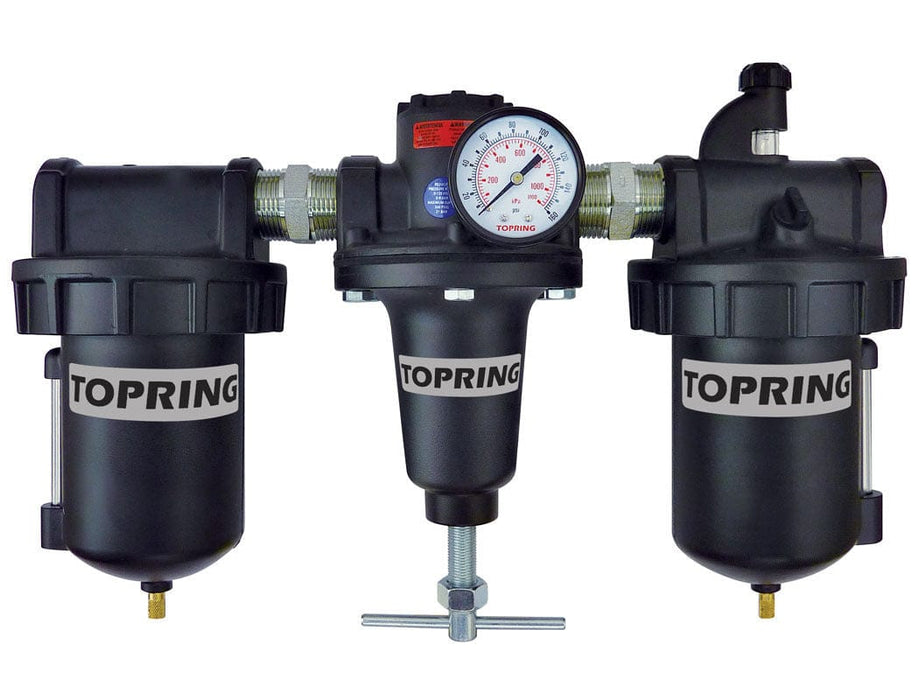

52.561.05 : TOPRING FILTER + REGULATOR + LUBRICATOR 1 AUTOMATIC ZINC (5 MICRONS) HIFLO
TOPRING PRODUCTS ARE DROPSHIPPED DIRECT FROM TOPRING WAREHOUSE IN QUEBEC
52.561.05 : TOPRING FILTER + REGULATOR + LUBRICATOR 1 AUTOMATIC ZINC (5 MICRONS) HIFLO
SPECIFICATIONS
• Port Size: 1 (F) NPT
• Maximum Airflow at 100 PSI: 300 SCFM
• Maximum Working Pressure: 175 PSI
• Pressure Range: 2-125 PSI / Optional 5-250 PSI
• Working Temperature: 4 to 52 °C
• Filtration: Standard 40 microns / Optional 5 microns
• Drain: Internal automatic drain
• Bowl Capacity: 0.5 L
• Pressure Gauge Port Size: 1/4 (F) NPT
Material(s):
• Body Material(s): Zinc (Aluminum for 2 NPT)
• Bowl Type: Zinc
FEATURES
• High flow design
• Removes contaminants down to 40 microns in size
• Removes water through centrifugal force
• Maintains constant downstream pressure
• Robust T-handle pressure adjustment
• Lubrication automatically proportioned to airflow, eliminating readjustment
• Precision needle valve assures repeatable oil delivery and provides simple adjustment of delivery rates
• Automatic drain available
• Excellent performance
• Heavy-duty for long lifespan and reliability
• Easy maintenance
• High performance FRLs for heavy-duty applications
• High flow with low pressure drop
