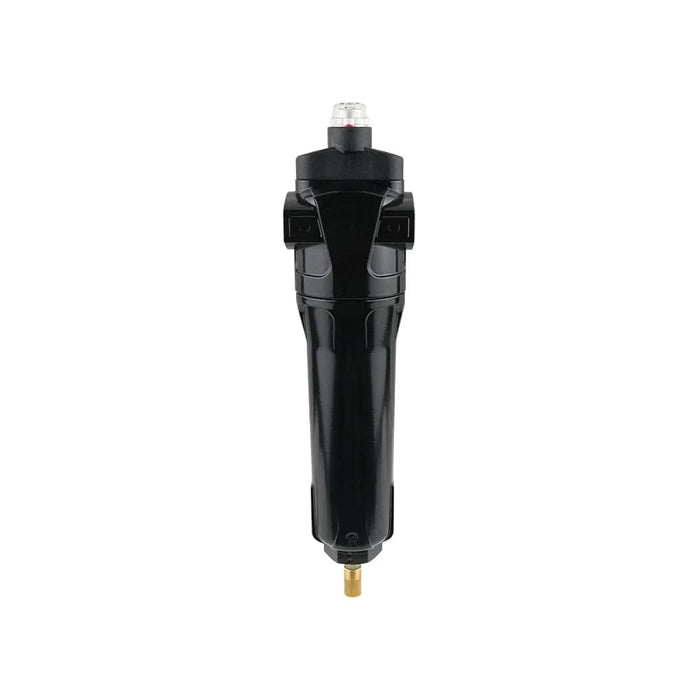

53.320.02 : Topring Filter 1/4 NPT 25 SCFM M1 TOPDRY v2

53.320.02 : Topring Filter 1/4 NPT 25 SCFM M1 TOPDRY v2

Technical specifications

• Product series.. 53
• Product type.. Filters
• Sub-Brand.. Topdry
• Nominal airflow (SCFM).. 25
• Maximum Inlet Pressure (PSI).. 232
• With NEC.. Yes
• THIS.. Yes
• Filter type.. Particle
• Reference filtration level (micron).. 1
• Input connection type.. Threaded
• Input connection subtype.. NPT
• Nominal inlet size (imperial).. 1/4 in
• Type of input connection.. Female
• Number of outputs.. 1
• Output connection type.. Threaded
• Output connection subtype.. NPT
• Nominal outlet size (imperial).. 1/4 in
• Type of output connection.. Female
• Type of bleeder.. Automatic
• Location of the bleeder.. Internal
• Trigger Type.. Mechanical float
• Color.. Black
• Body material.. Aluminum
• Bowl or reservoir material.. Aluminum
• Filter media or screen material.. Borosilicate glass fiber
• Bleeder included.. Yes
• Reducer included.. No
• Installation type.. Vertical
• Clearance required under the product (mm).. 70.1
• Clearance required under product (in).. 2.76
