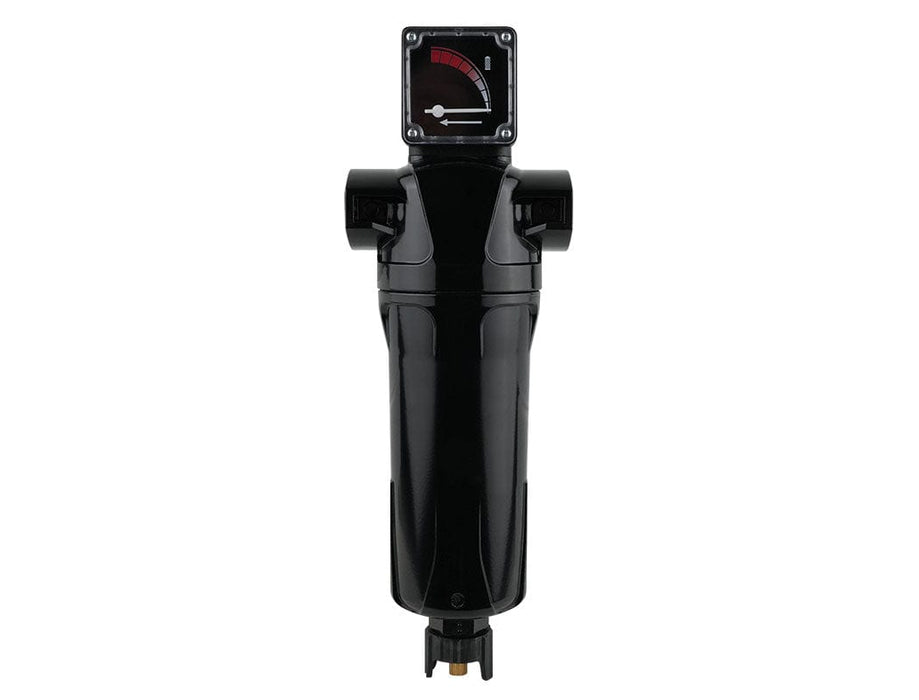

53.342.03 : Filter 2 npt 700 scfm m01 topdry
53.342.03 : Filter 2 npt 700 scfm m01 topdry
Technical specifications and certifications
Material
• Housing: Aluminum die cast
Specifications
• Maximum Working Pressure: 232 PSI
• Working Temperature: M01: 2 to 80 °C
Features and benefits
• Three grades of filtration available
• Reliable and efficient removal of liquid and solid contaminants
• Large condensate reservoir for bulk oil collection
• Advanced airflow design for optimum performance and reducing pressure drops
• External powder coated surface for enhanced abrasion and corrosion resistance
• Compact, modular design for quick and easy installation
• No tie-rod insert minimizing maintenance needs
• Automatic drain with manual override for testing and depressurization
• For food and beverage, chemical, laboratory, medical and natural gas applications
• Suitable for use with all compressor oils including mineral and synthetic oil
Operation and installation
Installation Tip:
The direction of the airflow is marked with an arrow on the Pop-up indicator or the differential pressure indicator.
For the proper functioning of the filter, it is essential to comply with this installation tip.
