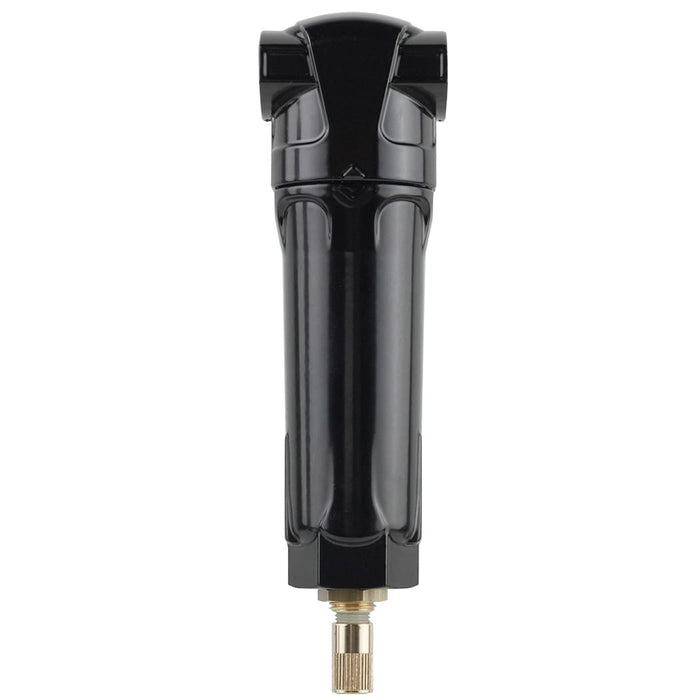

56.400 : Topring Water Sep. 6SCFM 1/8FNPT TOPD
by TOPRING
Original price
$338.16
-
Original price
$338.16
Original price
$338.16
$338.16
-
$338.16
Current price
$338.16
56.400 : Topring Water Sep. 6SCFM 1/8FNPT TOPD
Technical Specifications
- Body Material.. Aluminum
- Bowl or Reservoir Material.. Aluminum
- CE.. Yes
- Clearance Required Under The Product (in).. 2.35
- Clearance Required Under The Product (mm).. 59.69
- Color.. Black
- Compatible Fluids.. Air
- Drain Included.. Yes
- Drain Location.. Internal
- Drain Type.. Automatic
- Inlet Connection Gender.. Female
- Inlet Connection Subtype.. NPT
- Inlet Connection Type.. Threaded
- Inlet Nominal Size (Imperial).. 1/8 in
- Installation Type.. Vertical
- Maximum Fluid Temperature (°C).. 80
- Maximum Inlet Pressure (PSI).. 232
- Minimum Fluid Temperature (°C).. 2
- Nominal Airflow Rate (SCFM).. 6
- Outlet Connection Gender.. Female
- Outlet Connection Material.. Aluminum
- Outlet Connection Subtype.. NPT
- Outlet Connection Type.. Threaded
- Outlet Nominal Size (Imperial).. 1/8 in
- Product Series.. 56
- Product Type.. Water Separators
- Reducer Included.. No
- Sub-Brand.. TOPDRY
- Trigger Type.. Mechanical Float
- With CRN.. Yes
