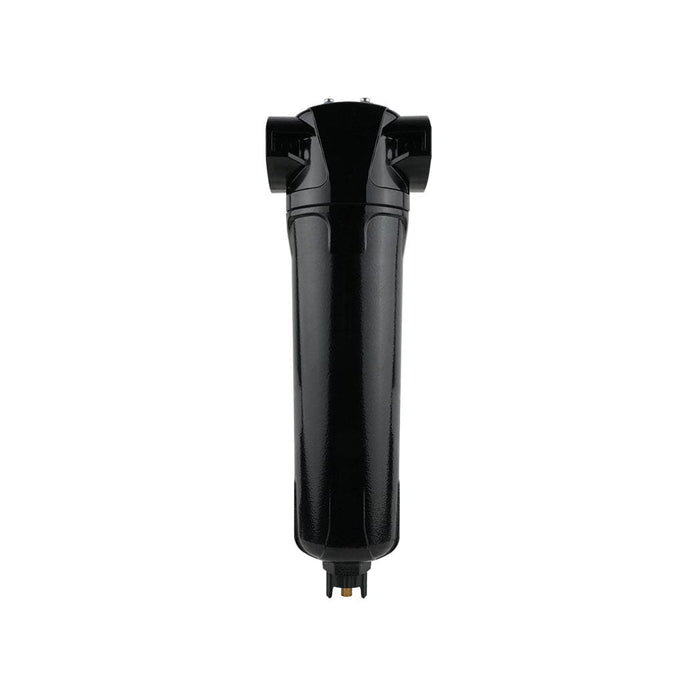

56.435 : Topring Water Separator 175 SCFM 1 (F)NPT TOPDRY v2

56.435 : Topring Water Separator 175 SCFM 1 (F)NPT TOPDRY v2

Technical specifications

• Product series.. 56
• Product type.. Water separators
• Sub-Brand.. Topdry
• Nominal airflow (SCFM).. 175
• Maximum Inlet Pressure (PSI).. 232
• Input connection type.. Threaded
• Input connection subtype.. NPT
• Nominal inlet size (imperial).. 1 in
• Type of input connection.. Female
• Output connection type.. Threaded
• Output connection subtype.. NPT
• Nominal outlet size (imperial).. 1 in
• Type of output connection.. Female
• With NEC.. Yes
• THIS.. Yes
• Type of bleeder.. Automatic
• Location of the bleeder.. Internal
• Trigger Type.. Mechanical float
• Compatible fluids.. Air
• Bleeder included.. Yes
• Reducer included.. No
• Color.. Black
• Body material.. Aluminum
• Bowl or reservoir material.. Aluminum
• Output connection material.. Aluminum
• Installation type.. Vertical
• Clearance required under the product (mm).. 80.01
• Clearance required under product (in).. 3.15
