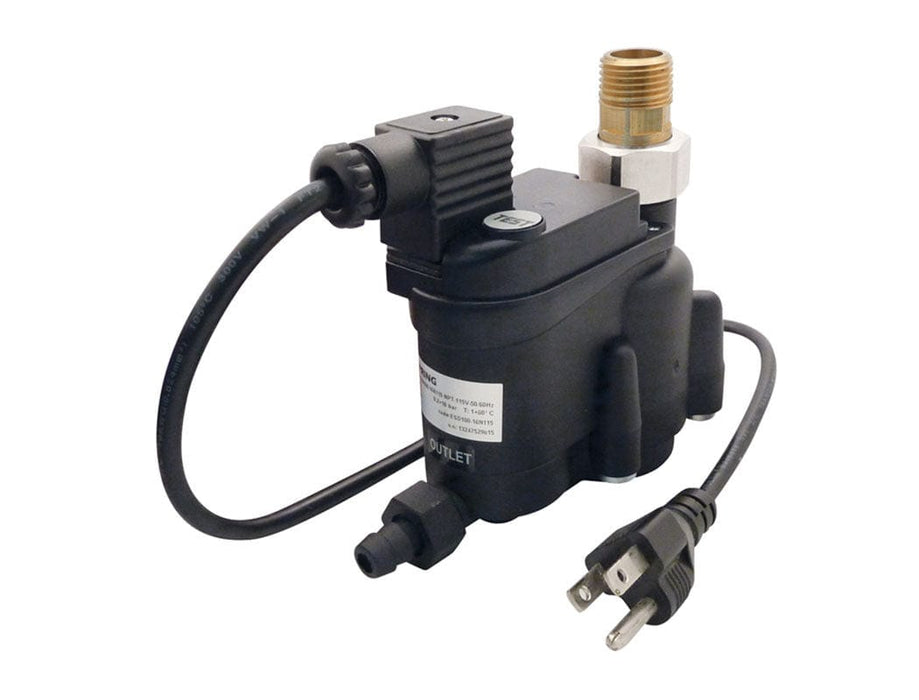

59.250 : TOPRING ZERO AIR LOSS automatic drain 128 SCFM 1/2 (M) NPT ELECTRIC CORD TOPDRAIN
59.250 : TOPRING ZERO AIR LOSS automatic drain 128 SCFM 1/2 (M) NPT ELECTRIC CORD TOPDRAIN
SPECIFICATIONS:
• With electrical cord
• Connections :
• Inlet: 1/2 (M) NPT
• Outlet I.D (Hose barb): 12 mm
Capacity:
• Compressor, Aftercooler: 128 SCFM
• Refrigerated, Air Dryer: 249 SCFM
• Filter, Water Seperator: 1278 SCFM
• Dimensions: (H) 120 mm x (W) 60 mm x (D) 136 Mm
• Maximum Supply Pressure: 230 PSI
• Working Temperature: 1 to 60 °C
• Voltage: 115 VAC / 1ph / 50-60 Hz
• Power Cord: 1.8 m heavy duty cord with tripolar connector included
Material(s):
• Body: Polyamide
• Chamber: Aluminum
• Valve Internal Parts: Stainless steel
• Diaphragm: Fluoroelastomer
• UL, CE
FEATURES:
• Electronic condensate drains with digital level control
• Compact design, minimal space required
• Optimal price/performance ratio
• Integrated filter to collect contaminations
• Easy cleaning and maintenance
• Fast-easy lock connection
• Connection for drainage tube
• Ball valve strainer included
