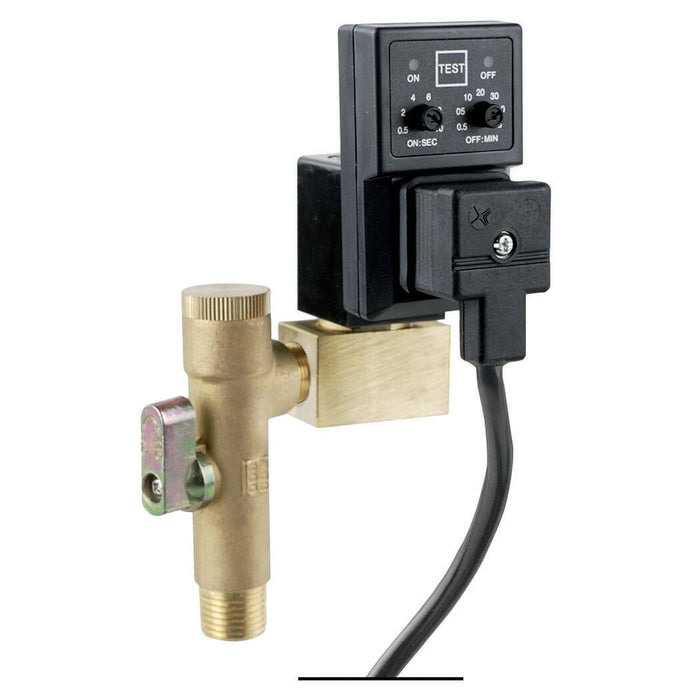

59.349 : Topring AutoDrain+strain 1/2(M)-3/8(F)NPT

59.349 : Topring AutoDrain+strain 1/2(M)-3/8(F)NPT

Technical Specifications

• Adjustability Capacity.. Yes
• Alternating Current Voltage (AC).. 115V
• Ball Valve Strainer Included.. Yes
• Body Material.. ABS Polymer
• CE.. Yes
• Compatible Fluids.. Air
• Drain Connection Material.. Brass
• Drain Type.. Automatic
• Inlet Connection Gender.. Male
• Inlet Connection Material.. Brass
• Inlet Connection Subtype.. NPT
• Inlet Connection Type.. Threaded
• Inlet Nominal Size (Imperial).. 1/2 in
• Installation Type.. Vertical
• Maximum Cycle Opening Time (sec).. 10
• Maximum Fluid Temperature (°C).. 90
• Maximum Inlet Pressure (PSI).. 230
• Maximum Interval Time Between Two Cycles (min).. 45
• Mechanism or Internal Moving Parts Material.. Polymer
• Minimum Cycle Opening Time (sec).. 0.5
• Minimum Fluid Temperature (°C).. 0
• Minimum Interval Time Between Two Cycles (min).. 0.5
• NEMA.. 4
• Outlet Connection Gender.. Female
• Outlet Connection Material.. Brass
• Outlet Connection Subtype.. NPT
• Outlet Connection Type.. Threaded
• Outlet Nominal Size (Imperial).. 1/2 in
• Outlet Quantity.. 1
• Power Cable Length (ft).. 3.28
• Power Cable Length (m).. 1.8
• Power Cord Included.. Yes
• Power Supply Type.. Wired
• Product Series.. 59
• Product Type.. Condensate Drains
• Seal Material.. FKM/Fluoroelastomer
• Sub-Brand.. MAXDRAIN
• Trigger Type.. Analog Timer
• Valve Material.. Brass and Stainless Steel
