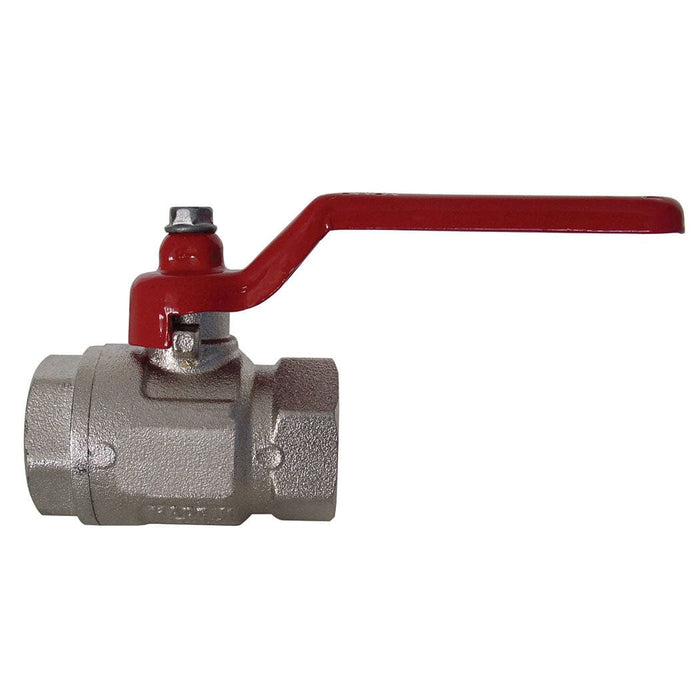

65.825 : Topring Brass Ball Valve 1-1/4(F) x 1-1/4(F)NPT

65.825 : Topring Brass Ball Valve 1-1/4(F) x 1-1/4(F)NPT

Technical specifications

• Product series.. 65
• Product type.. Quarter-turn valves
• Lockable.. No
• Maximum Inlet Pressure (PSI).. 435
• With NEC.. No
• Body material.. Brass
• Body finish.. Nickel plated/nickel plated
• Handle material.. Steel
• Sealing gasket material.. FKM/Fluoroelastomer, Nitrile/NBR
• Material of the mechanism or internal moving parts.. Chrome-plated brass
• Inlet connection material.. Nickel-plated brass
• 2nd inlet connection material.. Nickel-plated brass
• Compatible fluids.. Air, Water
• Input connection type.. Threaded
• Input connection subtype.. NPT
• Nominal inlet size (imperial).. 1-1/4 in
• Type of input connection.. Female
• Number of outputs.. 1
• Output connection type.. Threaded
• Output connection subtype.. NPT
• Nominal outlet size (imperial).. 1-1/4 in
• Type of output connection.. Female
• Exhaust.. No
• Actuation type.. Hand
