79.002 : Topring Steelpro manual/Thermoflex 1/2x100'x1/2(M)NPT
by TOPRING
Original price
$1,172.73
-
Original price
$1,172.73
Original price
$1,172.73
$1,172.73
-
$1,172.73
Current price
$1,172.73

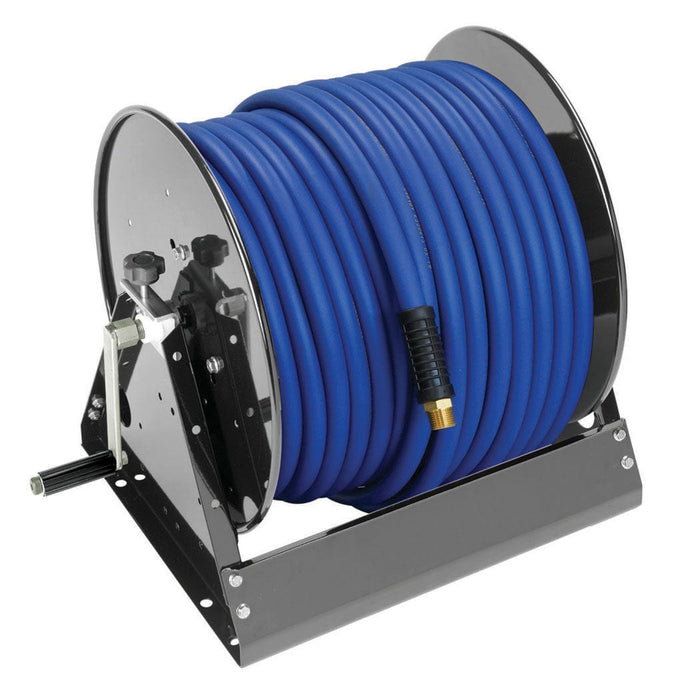

79.002 : Topring Steelpro manual/Thermoflex 1/2x100'x1/2(M)NPT
Technical specifications
- Product series.. 79
- Product type.. Reels
- Sub-Brand.. Thermoflex
- Compatible fluids.. Air
- Color.. Black
- Pipe color.. Blue
- Body material.. Steel
- Dispenser format.. Standard
- Material of the mechanism or internal moving parts.. Nylon and fiberglass
- Mounting bracket material.. Steel
- Output connection material.. Brass
- Nominal Diameter (in).. 1/2
- Inside Diameter (in).. 3/8
- Maximum Use Length (ft).. 100
- Maximum length of use (m).. 30.48
- Minimum Inlet Pressure (PSI).. 300
- Maximum Inlet Pressure (PSI).. 300
- Minimum fluid temperature (°C).. -26
- Maximum fluid temperature (°C).. 65
- Adjustability.. No
- Housing.. Open
- Winding type.. Manual
- Number of arms.. None
- Input connection type.. Threaded
- Input connection subtype.. NPT
- Nominal inlet size (imperial).. 1/2 in
- Type of input connection.. Female
- Output connection type.. Threaded
- Output connection subtype.. NPT
- Nominal outlet size (imperial).. 1/2 in
- Type of output connection.. Male
- Hose included.. Yes
- Brass fitting included.. Yes
- Reducer included.. No
- Rotation capacity.. Continue
- Maximum rotation angle.. 360°
- Flexibility at +20°.. C3/5
- Flexibility at -20°.. C3/5
- Conductivity.. Driver
- Phthalate-free.. Yes
- Silicone-free.. Yes
- ARPM oil resistance class.. RMA-Class B
- Required installation hardware.. Screw
- Installation type.. Floor
- Number of outputs.. 1
- Number of entries.. 1
