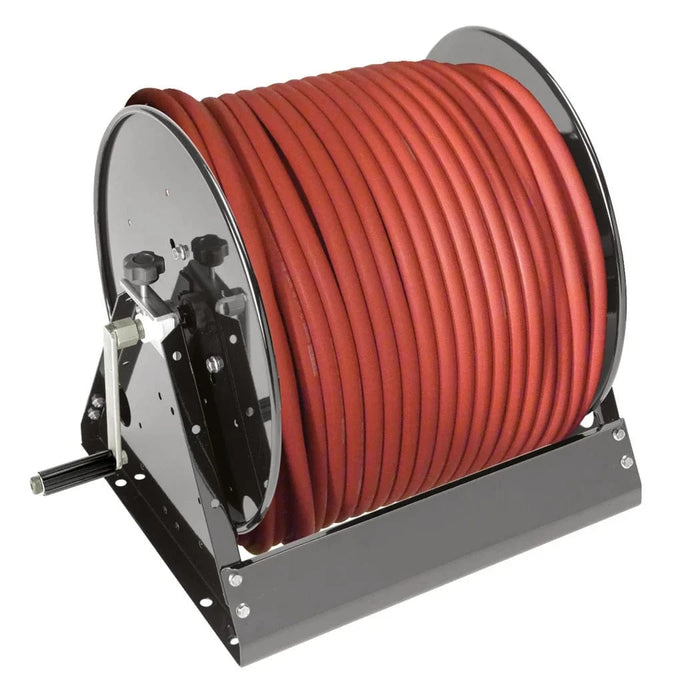

79.008 : Topring Steelpro manual/Superflex 3/8x200'x3/8(M)NPT
by TOPRING
Original price
$1,720.16
-
Original price
$1,720.16
Original price
$1,720.16
$1,720.16
-
$1,720.16
Current price
$1,720.16
79.008 : Topring Steelpro manual/Superflex 3/8x200'x3/8(M)NPT
Technical specifications
- Product series.. 79
- Product type.. Reels
- Sub-Brand.. Steelpro
- Compatible fluids.. Air
- Color.. Black
- Pipe color.. Red
- Body material.. Steel
- Dispenser format.. Standard
- Material of the mechanism or internal moving parts.. Nylon and fiberglass
- Mounting bracket material.. Steel
- Output connection material.. Brass
- Nominal Diameter (in).. 3/8
- Inside Diameter (in).. 3/8
- Maximum Use Length (ft).. 200
- Maximum length of use (m).. 60.96
- Minimum Inlet Pressure (PSI).. 300
- Maximum Inlet Pressure (PSI).. 300
- Minimum fluid temperature (°C).. -29
- Maximum fluid temperature (°C).. 99
- Adjustability.. No
- Housing.. Open
- Winding type.. Manual
- Number of arms.. None
- Input connection type.. Threaded
- Input connection subtype.. NPT
- Nominal inlet size (imperial).. 1/2 in
- Type of input connection.. Female
- Output connection type.. Threaded
- Output connection subtype.. NPT
- Nominal outlet size (imperial).. 3/8 in
- Type of output connection.. Male
- Hose included.. Yes
- Brass fitting included.. Yes
- Reducer included.. Yes
- Rotation capacity.. Continue
- Maximum rotation angle.. 360°
- Flexibility at +20°C.. 3/5
- Flexibility at -20°C.. 2/5
- Conductivity.. Non-conductive
- ARPM oil resistance class.. RMA-Class A
- Required installation hardware.. Screw
- Installation type.. Floor
- Number of outputs.. 1
- Number of entries.. 1
