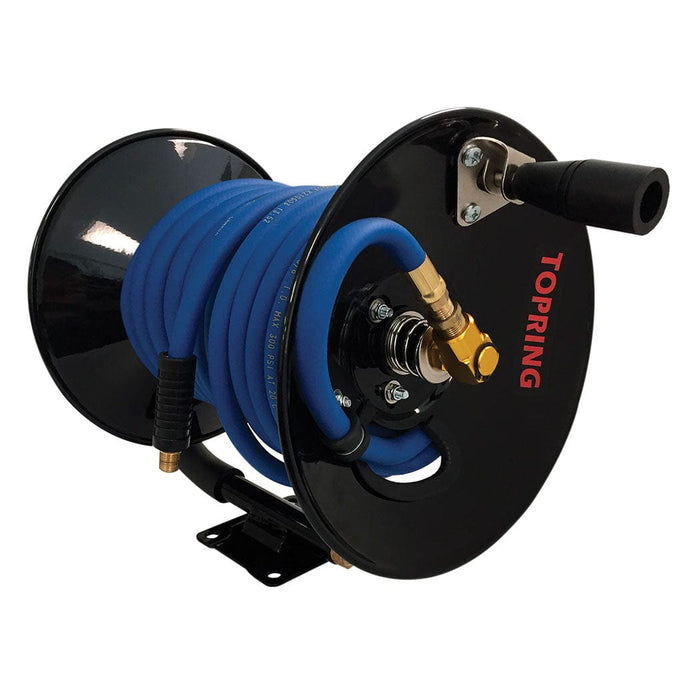

79.824 : Topring Ezreel/Thermoflex 1/4x200'x1/4(M)NPT Lrg

79.824 : Topring Ezreel/Thermoflex 1/4x200'x1/4(M)NPT Lrg

Technical specifications

• Product series.. 79
• Product type.. Reels
• Sub-Brand.. THERMOFLEX
• Compatible fluids.. Air
• Color.. Black
• Pipe color.. Blue
• Body material.. Steel
• Dispenser format.. Standard
• Mounting bracket material.. Steel
• Output connection material.. Brass
• Nominal Diameter (in).. 1/4
• Inside Diameter (in).. 1/4
• Maximum Use Length (ft).. 200
• Maximum length of use (m).. 60.96
• Minimum inlet pressure (PSI).. 300
• Maximum Inlet Pressure (PSI).. 300
• Minimum fluid temperature (°C).. -26
• Maximum fluid temperature (°C).. 65
• Adjustability.. No
• Housing.. Open
• Winding type.. Manual
• Number of arms.. None
• Input connection type.. Threaded
• Input connection subtype.. NPT
• Nominal inlet size (imperial).. 3/8 in
• Type of input connection.. Female
• Output connection type.. Threaded
• Output connection subtype.. NPT
• Nominal outlet size (imperial).. 1/4 in
• Type of output connection.. Male
• Hose included.. Yes
• Brass fitting included.. Yes
• Reducer included.. Yes
• Rotation capacity.. Continue
• Maximum rotation angle.. 360°
• Flexibility at +20°C.. 3/5
• Flexibility at -20°C.. 3/5
• Conductivity.. Driver
• Phthalate-free.. Yes
• Silicone-free.. Yes
• ARPM oil resistance class.. RMA-Class B
• Required installation hardware.. Screw
• Installation type.. Floor
• Number of outputs.. 1
• Number of entries.. 1
