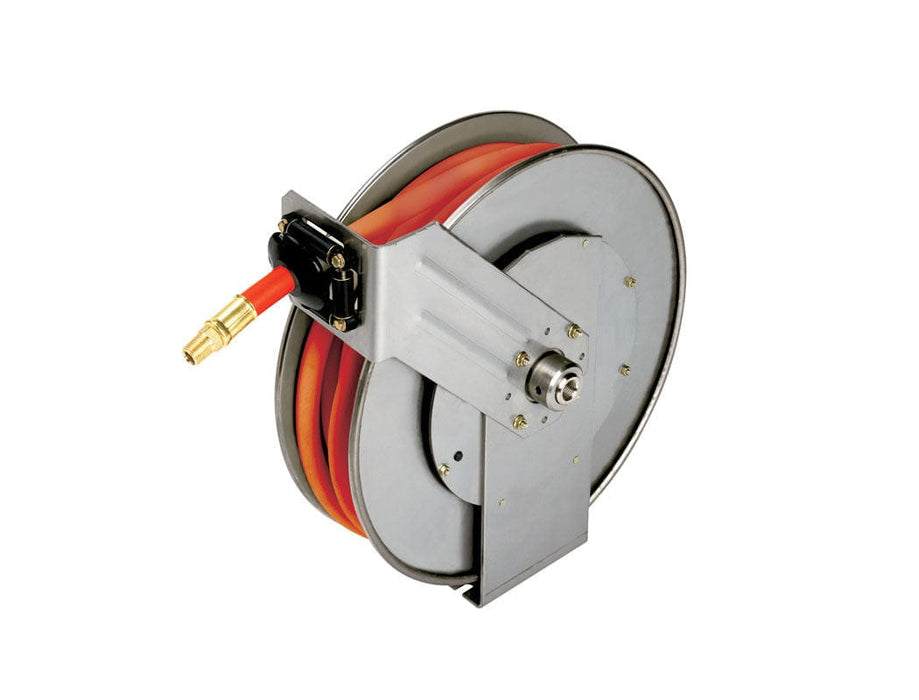

79.838 : Topring HOSE REEL STEELPRO STAINLESS STEEL/AIRFLEX 3/8 X 70' X 3/8 (M) NPT LRG
TOPRING PRODUCTS ARE DROPSHIPPED DIRECT FROM TOPRING WAREHOUSE IN QUEBEC
79.838 : HOSE REEL STEELPRO STAINLESS STEEL/AIRFLEX 3/8 X 70' X 3/8 (M) NPT LRG
SPECIFICATIONS
• Hose reel with hose
• Hose: Rubber AIRFLEX
• Hose I.D.: 3/8 in
• Hose Length: 70 ft
• Inlet : 1/2 (F) NPT
• Outlet: 3/8 (M) NPT
• Fluid: Compressed air, Water
• Maximum Working Pressure: 250 PSI
• Reel color : Grey
• Guard bend restrictor
Material(s):
• 304 STAINLESS STEEL
• Stainless steel inlet fitting available upon special request
FEATURES
HOSE REEL
• Automatic retractable hose reel
• Constructed of heavy gauge 304 stainless steel
• 1 arm hose reel with 8 position guide arm
• Heavy gauge base with no welds
• Fully committed, non-jamming latch pawl
• Nickel plated swivel reduces corrosion potential
• Single set screw to access latch area and spring case
• Drive spring mechanism lubricated for life
• One piece combination latch, spring arbor, main bearing and spool support for fewer moving parts
• Beaded edges on spool prevent hose damage or injury to users
• Non-sparking latch mechanism in the event flammable gases or liquids are present
• Narrow compact design permits installation where space is a factor
• Available on request: Reel with white washdown hose
• Connecting hose not included
• Refer to product code 79.014 for the proper connecting hose
HOSE
• AIRFLEX PREMIUM: Long lasting quality EPDM rubber air hose
• Excellent abrasion resistance
• Tube resistant to oil mist contained in compressed air
• Excellent for air tools. General industrial, construction and agricultural applications
• Maximum Working Pressure: 250 PSI
• Working Temperature: -40 to 100°C
