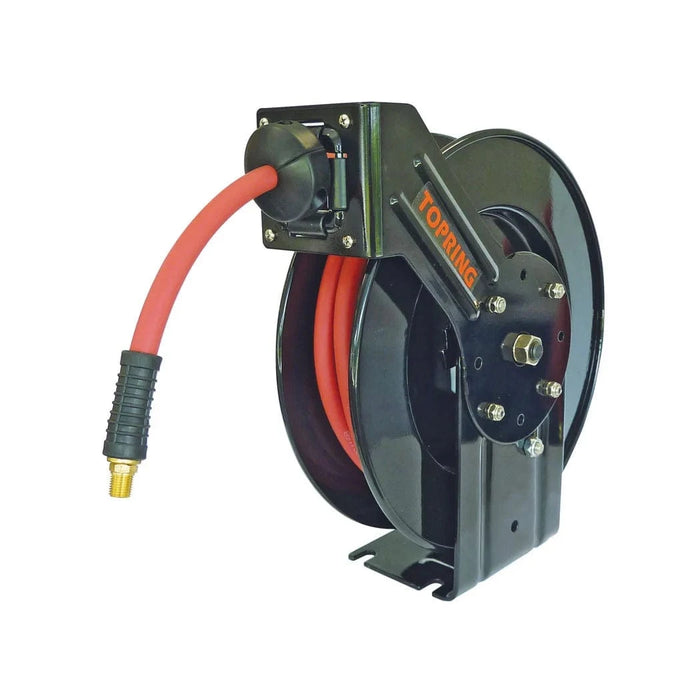

79.999 : Topring Topreel/Airflex 1/2x65'x3/8(M)NPT XLrg
by TOPRING
Original price
$1,020.37
-
Original price
$1,020.37
Original price
$1,020.37
$1,020.37
-
$1,020.37
Current price
$1,020.37
79.999 : Topring Topreel/Airflex 1/2x65'x3/8(M)NPT XLrg
Technical specifications
- Product series.. 79
- Product type.. Reels
- Sub-Brand.. TOPREEL
- Compatible fluids.. Air
- Color.. Black
- Pipe color.. Red
- Body material.. Steel
- Dispenser format.. XL
- Mounting bracket material.. Steel
- Output connection material.. Brass
- Nominal Diameter (in).. 1/2
- Inside Diameter (in).. 1/2
- Maximum Use Length (ft).. 65
- Maximum length of use (m).. 19,812
- Minimum inlet pressure (PSI).. 300
- Maximum Inlet Pressure (PSI).. 300
- Minimum fluid temperature (°C).. -40
- Maximum fluid temperature (°C).. 99
- Adjustability.. Yes
- Housing.. Open
- Winding type.. Spring loaded
- Number of winding guide positions.. 9
- Number of arms.. 1
- Number of positions.. 3
- Input connection type.. Threaded
- Input connection subtype.. NPT
- Nominal inlet size (imperial).. 1/2 in
- Type of input connection.. Female
- Output connection type.. Threaded
- Output connection subtype.. NPT
- Nominal outlet size (imperial).. 3/8 in
- Type of output connection.. Male
- Hose included.. Yes
- Brass fitting included.. Yes
- Reducer included.. Yes
- Rotation capacity.. Continue
- Maximum rotation angle.. 360°
- Flexibility at +20°C.. 3/5
- Flexibility at -20°C.. 3/5
- Conductivity.. Driver
- Required installation hardware.. Screw
- Installation type.. Wall, Ceiling, Floor
- Number of outputs.. 1
- Number of entries.. 1
