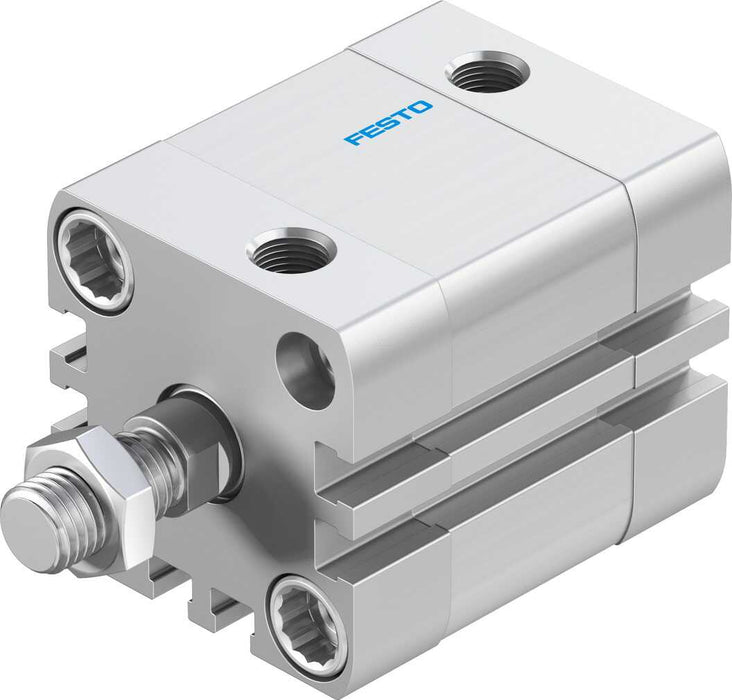

ADN-32-15-A-P-A : Compact Air Cylinder (536270)
by Festo
Original price
$111.88
-
Original price
$111.88
Original price
$111.88
$111.88
-
$111.88
Current price
$111.88
Compact cylinders ADN/AEN, to ISO 21287
SPECIFICATIONS
- Stroke : 15 mm
- Piston diameter : 32 mm
- Piston rod thread : M10x1.25
- Cushioning : Elastic cushioning rings/pads at both ends
- Mounting position : Any
- Conforms to standard : ISO 21287
- Piston rod end : External thread
- Position sensing : For proximity sensor
- Symbol : 00991217
- Variants : Piston rod at one end
- Operating pressure : 0.06 MPa - 1 MPa
- Operating pressure : 0.6 bar - 10 bar
- Mode of operation : Double-acting
- Operating medium : Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media : Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)2 - Moderate corrosion stress
- LABS (PWIS) conformity : VDMA24364-B1/B2-L
- Cleanroom class : Class 6 according to ISO 14644-1
- Ambient temperature : -20 °C ... 80 °C
- Impact energy in the end positions : 0.4 J
- Theoretical force at 6 bar, retracting : 415 N
- Theoretical force at 6 bar, advancing : 483 N
- Moving mass at 0 mm stroke : 60 g
- Additional moving mass per 10 mm stroke : 9 g
- Basic weight with 0 mm stroke : 265 g
- Additional weight per 10 mm stroke : 30 g
- Type of mounting Optionally: With through-hole With internal thread With accessories
- Pneumatic connection : G1/8
- Note on materials : RoHS-compliant
- Flange screws material : Steel
- Cover material : Wrought aluminum alloy, anodized
- Seals material : TPE-U(PUR)
- Piston rod material : High-alloy steel
- Material of cylinder barrel : Wrought aluminum alloy, smooth-anodized
ADVANTAGES
• No adjustment required
• Cushioning capacity is four times bigger than ADN-...-P
• Saves time
• Reduces noise
