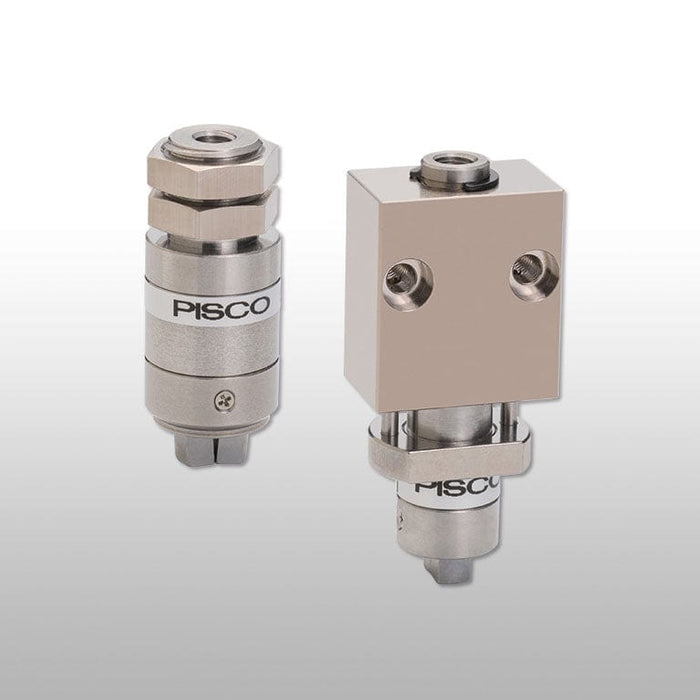

CHM08BA05C : PISCO MINI INTERNAL GRIPPER
by PISCO
Original price
$113.46
-
Original price
$113.46
Original price
$113.46
$113.46
-
$113.46
Current price
$113.46
CHM08BA05C : PISCO MINI INTERNAL GRIPPER
•How to Grip : Open, Swing Type
•Operation Method : Single Acting Type (Normally Closed)
•Main Body Shape : Cylindrical Shape
Configured Specifications
| How Grip | Swing Type of Opening | Number of Fingers | 2 pcs. |
|---|---|---|---|
| Type | Main Body | Operation Method | Single Acting Type (Normally Close) |
| Main Body Shape | Cylindrical Shape | Gripping Force (Closed Side at 0.5 Mpa)(N) | 0.08 |
| Gripping Force (Open Side at 0.5 Mpa)(N) | 0.08 | Environment, Applications | Standard |
| Additional Function | No | Stroke Adjustment Mechanism | No |
| Operating Pressure Range(MPa) | 0.2～0.7 | Mounting Holder Shape | Shank Type |
| Gripper Finger Shape | For Groove-shaped Workpiece | Job dimensions groove width(mm) | 5~7 |
| Work dimensions hole diameter(mm) | - | - | - |
Basic Information
| How Grip | Swing Type of Opening | Number of Fingers | 2 pcs. | Type | Main Body |
|---|---|---|---|---|---|
| Operation Method | Single Acting Type (Normally Close) | Main Body Shape | Cylindrical Shape | Environment, Applications | Standard |
| Additional Function | No | Stroke Adjustment Mechanism | No | Operating Pressure Range(MPa) | 0.2::0.7 |
| Mounting Holder Shape | Shank Type |
Product Notes: Please check the product specification for the part number CHM08BA05C on the Open Chuck Shank Type. The CHM08BA05C is included in our offerings for Nihon Pisco Pneumatic Grippers and our full line of Nihon Pisco products.
