L4545-123-9 : REELCRAFT L4545-123-9 15 AMP X 45 FT NEMA 5-15R TRIPLE TAP POWER CORD REEL
L4545-123-9 : REELCRAFT L4545-123-9 15 AMP X 45 FT NEMA 5-15R TRIPLE TAP POWER CORD REEL
ALSO KNOWN AS L4545 123 9 REELCRAFT (OR REELCRAFT L45451239)

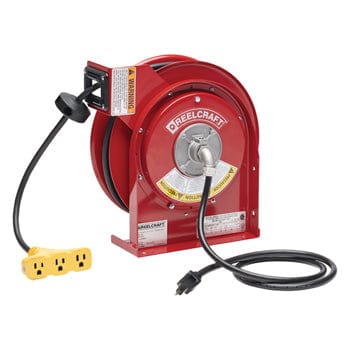

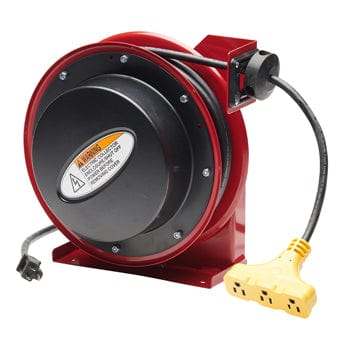

These power cord reels are designed for use in indoor, non-weathertight applications. The reinforced steel construction offers maximum strength and consistent quality while individually powder coated components protect against premature corrosion. High quality spring steel is used and conditioned to ensure there are no imperfections while the drive spring itself features a declutching arbor, virtually eliminating the possibility of spring damage due to reverse winding. All power cord reels are UL Listed and CSA approved. The included heavy-duty collector ring assures maximum conductivity. Please note, the GFCI Receptacle is designed to protect from line-to-ground shock hazards. It does not protect against short circuits or overloads. Power cord reels are shipped in the top wind position. The images here show the reels in the side wind position.
| DESCRIPTION | L4545-123-9 NEMA 5-15R triple tap power cord reel includes a 15 amp molded triple tap. The reel is supplied with a 4-5 foot pigtail that includes a NEMA 5-15P inlet straight blade plug. |
Specifications
| AMPS | 15 |
| AWG | 12 (3.32 mm²) |
| CONDUCTORS | 3 |
| CORD ENDING | Triple Outlet NEMA 5-15 |
| CORD INCLUDED | Yes |
| CORD LENGTH | 45 ft |
| CORD TYPE | SJEOOW |
| DIMENSIONS | 12.63" L x 9.38" W x 12.88" H |
| REEL SERIES | L4000 Series |
| VOLTS | 125 |
| WEIGHT | 28.00 lb |
