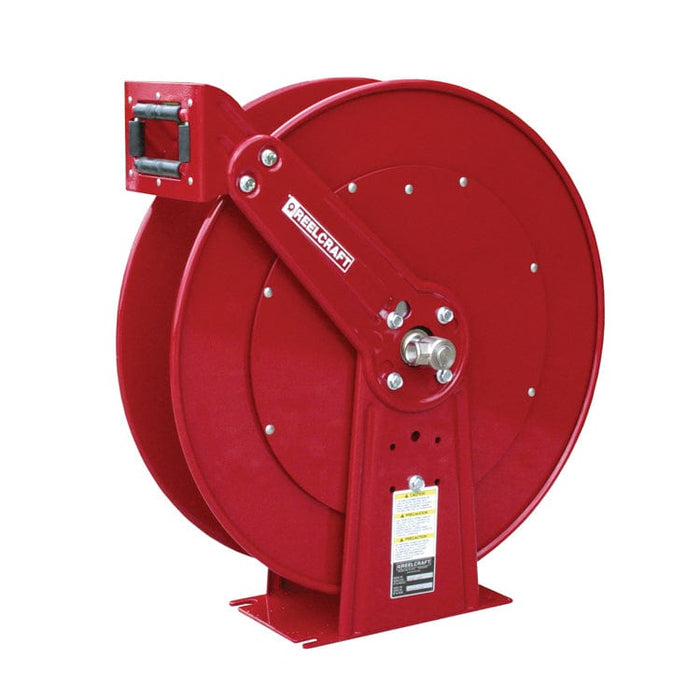

REELCRAFT RETRACTABLE HOSE REEL FOR 3/8" PRESSURE WASH HOSE UP TO 500 PSI
by Reelcraft
Original price
$1,063.89
-
Original price
$1,063.89
Original price
$1,063.89
$1,063.89
-
$1,063.89
Current price
$1,063.89
Made in the USA, the 80000 Series Ultimate Duty Spring Retractable Hose Reels feature all-steel construction and individually powder-coat components to produce a rugged, corrosion-resistant product suitable for a wide variety of applications. The steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to ensure maximum strength. The unitized, cast internal fluid path allows for easy assembly, while the containerized spring assembly allows for safer and easier handling during maintenance. The full flow swivel combines the high-grade seal design and materials for maximum service life.
Please note, hose and bumper are sold separately.
Specifications
| APPLICATION | Air, Water |
| DIMENSIONS | 24.000" L x 10.500" W x 25.375" H |
| HOSE CAPACITY | 100 ft |
| HOSE I.D. | 3/8" |
| HOSE O.D. | 0.60" |
| REEL INLET | 1/2" Female Pipe (NPT) |
| REEL OUTLET | 1/2" Female Pipe (NPT) |
| REEL SERIES | 80000 Series |
| REEL TYPE | Ultimate Duty Retractable Hose Reel |
| WEIGHT | 77.00 lb |
| WORKING PRESSURE | 500 psi |
Construction
| TEMPERATURE RANGE | Rated for low pressure air or water to a maximum temperature of 99°C (210°F). |
| INTERNAL FLUID PATH | Aluminum |
| SWIVEL ASSEMBLY | Steel |
| SWIVEL SEAL | Buna-N |
