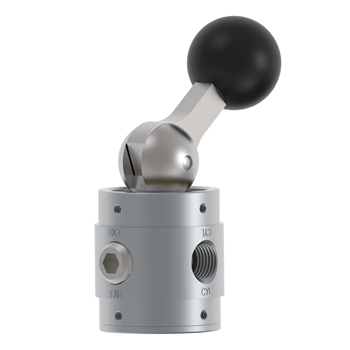

SSB250VB : Humphrey Stainless Steel Diaphragm Poppet Valve
SSB250V Series 1/4 NPT detented two or three port toggle valves feature the classic Humphrey diaphragm poppet principle. The unbalanced, spring return design assures tight sealing, both positions. Furnished with pipe plug for 2-way. Wetted parts are stainless steel and choice of FKM, EPDM, FEPM or NBR diaphragm elastomers. Suitable for reliable control of mild or aggressive gas or liquid media. Heavy duty lever has positive detent in both positions, and may be rotated for positioning.
| Media | Inert Gas and/or Mild Liquid or Aggressive Liquids |
| Valve Function | Detent |
| Piping Type | Inline, Direct piping |
| Port Size | 1/4 NPT |
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Size (in) HxWxD | 3.88 x 1.56 DIA |
| Options Included | Pipe Plug furnished for 2 Port Valve |
| Type of Operation | Toggle |
| Flow - SCFM @ 100 psig | 60 (air as media) |
| Flow - LPM @ 6.9 bar | 1699 (air as media) |
| ESEOD (orifice) - in (mm) | 0.215 (5.45) |
| Flow Coefficient (Cv) | 0.83 |
| Pressure Range (psi) | 0-125 |
| Ambient Temperature Range (⁰F) | -20~225 |
| Wetted Materials | SST, NBR |
| Weight (oz) | 13.0 |
